63 inch Vertical Turning Centers | Yama Seiki

63 inch

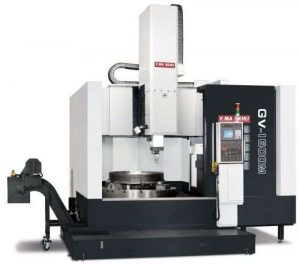

  • Yama Seiki GV-1600

    Travel (X/Z)
    ( 36.81” / 35.43” )

    Specifications

    Description Unit GV-1600
    CAPACITY Max. / Swing over saddle mm(in) 1999 mm (78.7″)
    Max. Turning Dia. mm(in)  1801 mm (70.9″)
    Max. Turning Length mm(in) 1300 mm (51.2″)
    Bar Capacity mm(in)
    SPINDLE Chuck Size (in) (63″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 250 rpm
    Motor output ( cont. / 30 min.) HP/kW 50.5 HP (37kW) / 61.4 HP (45 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type FANUC
    Spindle Nose A2-11
    FEED Travel (X/Z) mm(in) 36.81” (935 mm) / 35.43” (900mm)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type
    X-axis servo motor HP (KW)
    Z-axis servo motor HP (KW)
    BLOCK TOOL No. of Tool / Stations EA
    Tool Size OD mm(in)
    ID   mm(in)
    TANK CAPACITY Coolant Tank Gallon / litre 238 gal (900L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 100 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 152.0″ x 162.5″ x 212.4″
    ( 3,860 x 4,128 x 5,395 mm )
    Weight kg(lb) 25,500 kg ( 56,100 lb )
    NC Controller FANUC Oi-TD

    Yama Seiki GV-1600

    Travel (X/Z)
    ( 36.81” / 35.43” )
