Yama Seiki GLS-1500(L)

In stock


DescriptionUnitGLS-1500 L
CAPACITYMax. / Swing over saddlemm(in)230 mm (9″)
Max. Turning Diametermm(in) 390 mm (15.35″)
Max. Turning Lengthmm(in)330 mm (13″)
Bar Capacitymm(in)51 mm (2″)
SPINDLEChuck Size(in)(6″)
Hole through spindlemm(in)61mm (2.4″)
Spindle Speed (rpm)rpm6,000
Motor output ( cont. / 30 min.)Hp / kW15 (11kW)
Motor (Max/Cont.)kW(HP)
Torque (Max/Cont.)N.m
Spindle TypeDirect Belt Drive
Spindle NoseA2-5
FEEDTravel (X/Z)mm(in)(230mm (90″) (330mm (13″)
Rapid Travel (X/Z)m/min30 m/min
Slide TypeLinear Guide Way
X-axis servo motorHP (KW)3.6 HP ( 2.7 kW)
Z-axis servo motorHP (KW)3.6 HP ( 2.7 kW)
BLOCK TOOLNo. of Tool / StationsT12
Tool SizeOD mm(in)25mm (1″)
ID   mm(in)40mm (1″)
TANK CAPACITYCoolant TankGallon / litre26 gal (100L)
Lubricating Tankℓ(gel)
POWER SUPPLYElectric Power SupplykVA200
Thickness of Power CableSq
mm(in)86″ x 62″ x 67″ ( 2,174 x 1,550 x 1,680 mm )
Weightkg(lb)3,000 kg (6,600lb)
NCControllerFANUC Oi-TF

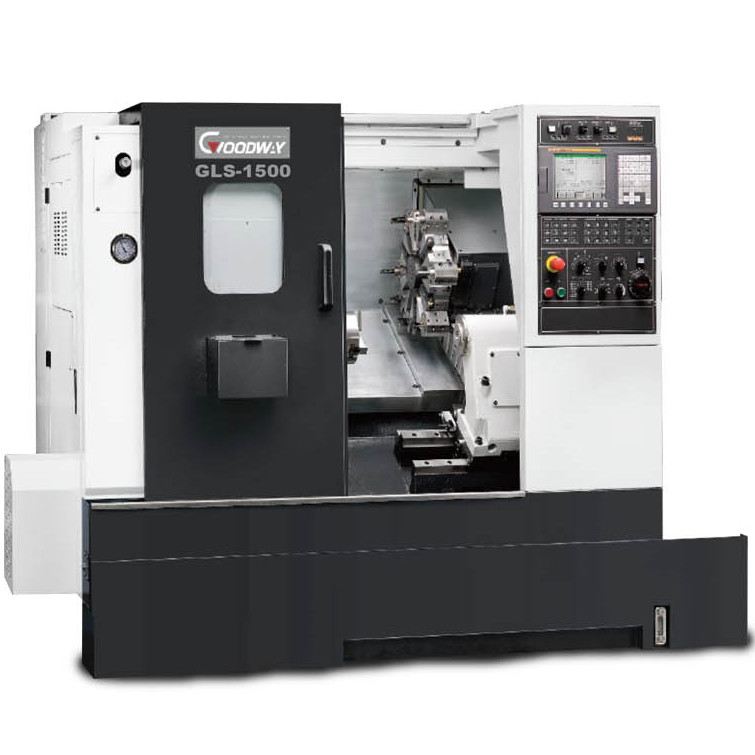

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high speed CNC turning center. Using 2 types of bed combined with super rigidity, high speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.

  • 30˚ slant-bed design provides smooth chip disposal and easier operator access.
  • Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
  • Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
  • The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
Chuck size6″8″
Bar CapacityØ 51 mm ( 2″ )Ø 65 mm ( 2.55″ )
Turning Length*2330 mm ( 12.9″ )GLS-1500 / MGLS-2000 / M
630 mm ( 12.9″ )GLS-1500L / LM / LY / LMS / LYS*1GLS-2000L / LM / LY / LMS / LYS*1

*1 Y-axis and sub-spindle is only applicable to the “L” series.
*2 Individual models may vary, detail specication please see work range diagram.

Z-axis carriage manual locks onto the tailstock base and moves it to the desired position with precision accuracy. The extension of the shaft can be controlled by program, which makes it easier to insert the center into the center hole.

Tailstock shown

Large 100L separate type coolant tank provides optimal heat dispersion and lower coolant temperature, which will help extend coolant life.


Compact structure and cover design minimizes factory space usage which increases efficiency.
