Specifications
| Description | Unit | GV-2000 | |
| CAPACITY | Max. / Swing Dia. | mm(in) | Ø 2,050 mm ( 80.7″ ) |
| Max. Turning Dia. | mm(in) | Ø 2,000 mm ( 78.7″ ) | |
| Max. Turning Length | mm(in) | 521 mm (20.5″) | |
| Bar Capacity | mm(in) | 32 mm (1.25’) | |
| SPINDLE | Chuck Size | (in) | (12″) |
| Hole through spindle | mm(in) | ||
| Spindle Speed (rpm) | r/min | 3,000 rpm | |

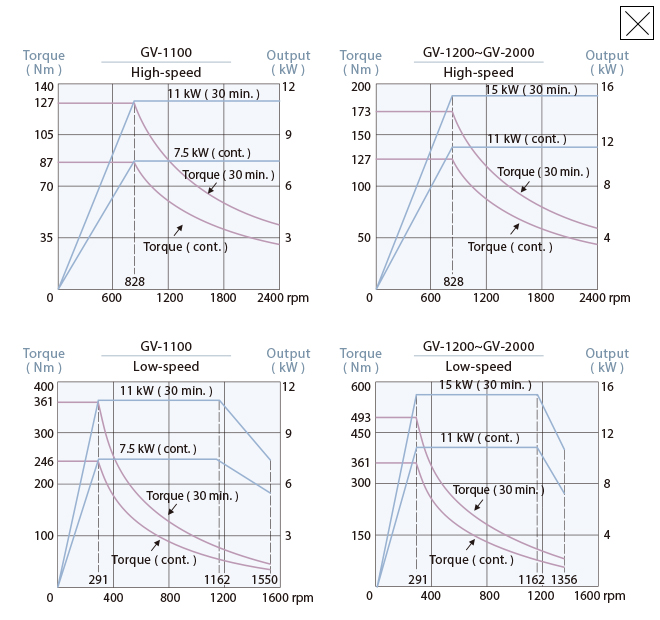

| Motor output ( cont. / 30 min.) | HP/kW | 20 HP (15kW) / 25 HP (18.5 kW) | |
| Motor (Max/Cont.) | kW(HP) | ||
| Torque (Max/Cont.) | N.m | ||
| Spindle Type | – | Belt | |
| Spindle Nose | – | A2-8 | |
| FEED | Travel (X/Z) | mm(in) | 13.78” (305 mm) / 21.65” (550mm) |
| Rapid Travel (X/Z) | m/min | 20m/min | |
| Slide Type | – | Linear Guide Way | |
| X-axis servo motor | HP (KW) | 2.1 HP ( 1.6 kW) | |
| Z-axis servo motor | HP (KW) | 4.0 HP ( 3.0 kW) | |
| BLOCK TOOL | No. of Tool / Stations | EA | 8 |
| Tool Size | OD mm(in) | 25mm (1”) | |
| ID mm(in) | 50 mm (1.97”) | ||
| TANK CAPACITY | Coolant Tank | Gallon / litre | 66.04 gal (250L) |
| Lubricating Tank | ℓ(gel) | ||
| POWER SUPPLY | Electric Power Supply | kVA | 40 kVA |
| Thickness of Power Cable | Sq | ||
| Voltage | V/Hz | ||
| MACHINE | Dimensions (L×WxH) |
mm(in) | 59.84″ x 86.61″ x 98.42″ ( 1,520 x 2,200 x 2,500 mm ) |
| Weight | kg(lb) | 5,000 kg (11,023 lbs.) | |
| NC | Controller | FANUC Oi-TD |
