Specifications
| Description | Unit | KBN135c |
|---|---|---|

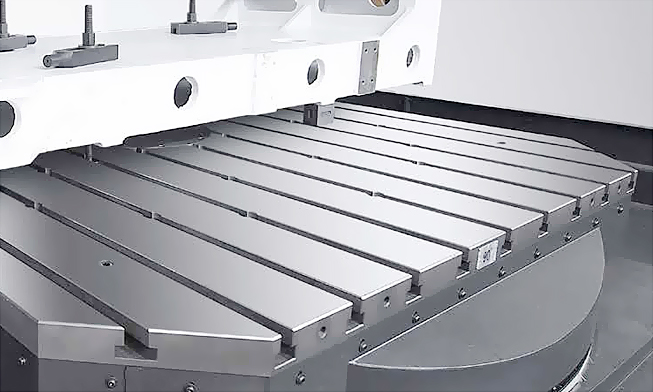

| Pallets Size | in | 78.74″ × 70.87″ |
| Max. Load Capacity | kgf | 15,000 |

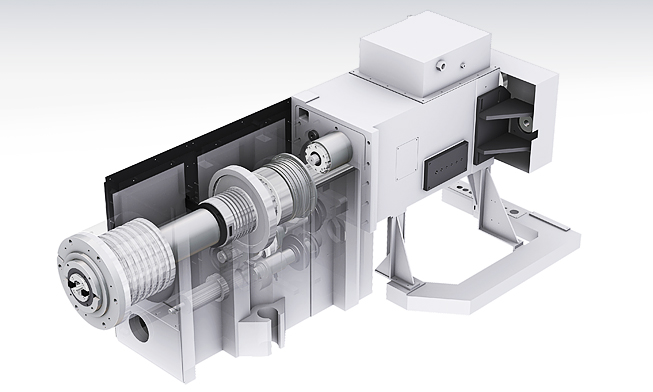

| Spindle Driving Method | – | GEAR(3STEP) |
| Spindle Taper | – | BT50 |
| Spindle RPM | r/min | 2,000 |
| Spindle Power | kW | 22/18.5 |
| Spindle Torque | ft.lb | 2295 |

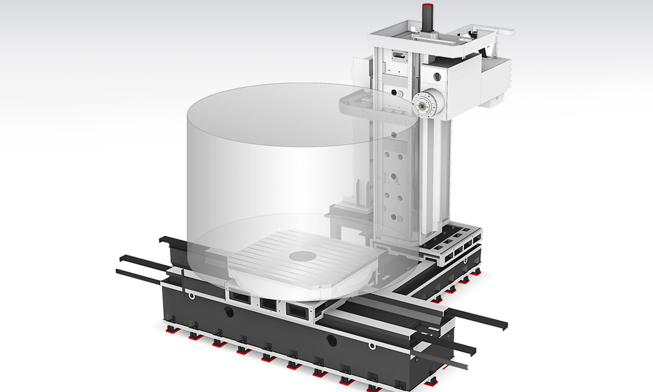

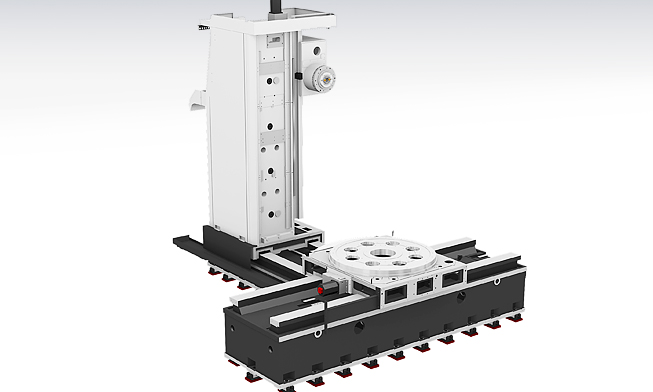

| Travel(X/Y/Z) | in | 118″ / 78.74″ / 63″ |
| Travel(A/C) | deg | 700(W-axis) |
| Rapid Feed Rate(X/Y/Z) | m/min | 394″ / 394″ / 394″ |
| Rapid Feed Rate(A/C) | r/min | 8(W-axis) |
| Slide Type | – | BOX |

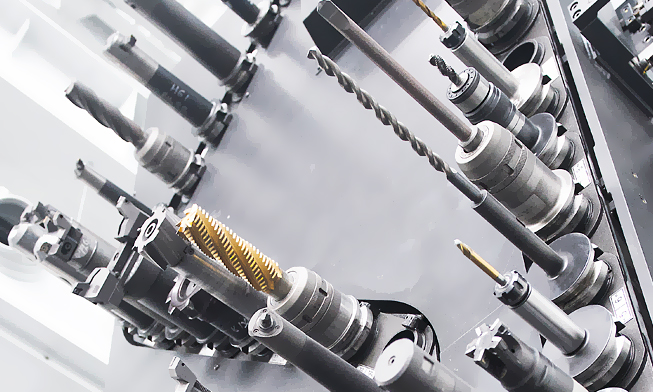

| No. of Tools | EA | 40 |
| Tool Change Time (Chip To Chip) |
sec | 33.2 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
