Leitz PMM-G

cnc machine qoute

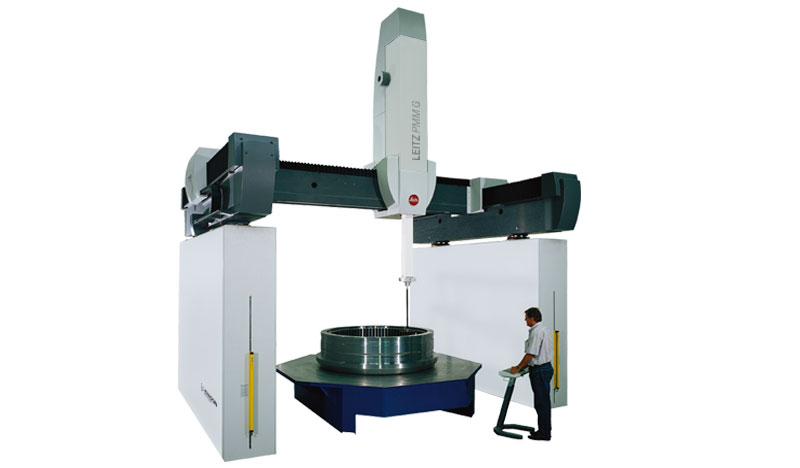

Leitz_PMM-G-M
Roll over image to zoom in
Click to open expanded view

In stock

CMM Specifications and Gear Inspection

CMM Specifications

Model   X stroke
[mm]		   Y stroke
[mm]		 Z stroke
[mm]
XX.20.12 3000/4000/5000/6000/7000 2000 1200
XX.30.12 3000/4000/5000/6000/7000 3000 1200
XX.40.12 5000/6000/7000 4000 1200
XX.45.12 5000/6000/7000 4500 1200
XX.20.16 3000/4000/5000/6000/7000 2000 1600
XX.30.16 3000/4000/5000/6000/7000 3000 1600
XX.40.16 5000/6000/7000 4000 1600
XX.45.16 5000/6000/7000 4500 1600
XX.20.20 3000/4000/5000/6000/7000 2000 2000
XX.30.20 3000/4000/5000/6000/7000 3000 2000
XX.40.20 5000/6000/7000 4000 2000
XX.45.20 5000/6000/7000 4500 2000
XX.30.25 3000/4000/5000/6000/7000 3000 2500
XX.40.25 5000/6000/7000 4000 2500
XX.30.30 3000/4000/5000/6000/7000 3000 3000
XX.40.30 5000/6000/7000 4000 3000



Gear Inspection

Cylindrical gears:

  • Spur, helical, double helical, splines (internal and external)
  • Clutch gears (internal and external)
  • Gear segments (minimum No. of teeth: 1)
  • Gear racks

Bevel gears:

  • Straight bevel, spiral bevel, hypoid bevel, crown gears

Curvic Couplings

Available interfaces:

  • Gleason GAGE 4/WIN; Klingelnberg KIMOS; DMG (Deckel Maho Gildemeister), Depo

Gear cutting tools:

  • Hob cutter, broach, shaper cutter, shaving gears, form cutter

Evaluation standards:

  • DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT
Leitz PMM-G gear inspection systems – Related specifications PMM-G XX.20.ZZ PMM-G XX.30.ZZ PMM-G XX.40.ZZ PMM-G XX.45.ZZ
Modul range [mm] 1 – 100 1 – 100 1 – 100 1 – 100 mm
Min. – max. gear dia. – spur [mm] 10 -1950 10 – 2950 10 – 3950 10 – 4450
Min. – max. gear dia. – helical* [mm] 10 – 1600 10 – 2500 10 – 3500 10 – 4100
Max. shaft length [mm] up to 7000 up to 7000 up to 7000 up to 7000

* The max. gear diameter depends on modul and styli configuration. Even bigger gearings can be measured, if rotated once for 90° during the measurement.

Categories: , ,

Leitz PMM-G

Leitz PMM-G – Worlds largest high precision CMM & gear inspection system



The Leitz PMM-G provides highest accuracy and a highly enhanced throughput for large-size XXL workpieces. These workpieces are used for example in aircraft and aerospace industries or in ship engine constructions. Also the measurement of large gears used in wind turbines is possible. Despite such large measuring strokes, the Leitz PMM-G reaches a precision and performance level, which is usually common with much smaller 3D measuring machines.

With the Leitz PMM-G, the probing frequency, acceleration, maximum speed and scanning performance are significantly enhanced.
The Leitz PMM-G features the Overhead Design with integrated U-shaped foundation for highest accuracy and high throughput. As a result, all moving masses have been minimized.

The X axis is equipped with dual drive motion systems and transducer systems. The PMM-G features also the Leitz LSP-S2 scanning probing system. This probe head measures very precisely even with long and heavy styli. Styli configurations of up to 800 mm and 1000 g are possible.

Leitz PMM-G gear inspection systems provide several advantages compared to a conventional single purpose gear tester:

  • They are much more flexible, as not only gears but any component can be measured.
  • Leitz gear inspection systems work without a rotary table, i.e. alignment or centering of the gear is not required.
  • Unrivalled throughput by automatically measuring a large number of gears on one pallet.
  • Complete inspection of gears mounted on long shafts of up to 7000 mm.
  • All datums are measured as specified in the drawing, even in large internal gears.
