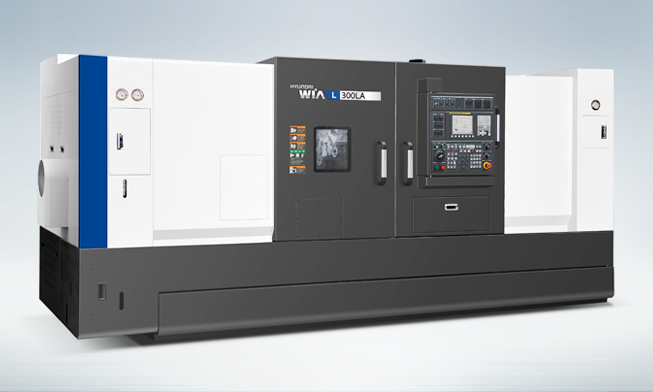

Hyundai Wia L300LMSA

In stock

Hyundai Wia L300LMSA


  • Sturdiness secured through the adoption of an all Axis box guide
  • Highly accurate direct link and highly sturdy all-in-one structure
  • Highly accurate pretension double-anchor method
  • Minimized heat deformation in the main spindle
  • Gearless type main spindle models are all equipped with a mill turret.
  • Integrated process realized through adoption of 8″ sub spindle : models equipped with sub spindle


Description Unit L300LA L300LMA L300LMSA
Max Turning Dia mm 500 410 410
Max Turning Length mm 1,320 1,280 1,250
Chuck Size inch 10″ 10″ Main 10″
Sub 8″
Driving Method GEAR Belt Belt
Spindle RPM r/min 3,600 3,500 3,500
Spindle Output kW 22/18.5 22/18.5 22/18.5
Spindle Torque N.m 755.8/635.5 493.2/414.7 493.2/414.7
Travel(X/Z) mm 290/1,350 290/1,350 290/1,350/1,200
Rapid Travel(X/Z) m/min 20/24 20/24 20/24/20
Slide Type BOX BOX BOX
No. of Tools EA 12 12 12
Tool Size mm 25/50 25/50 25/50
Milling Tool Speed r/min 4,000 4,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
