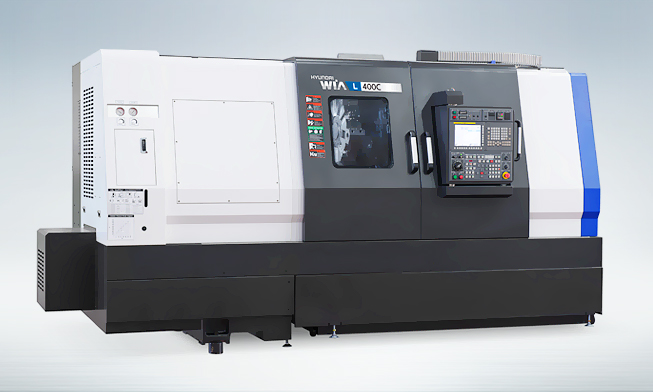

Hyundai Wia L400LC

In stock

Hyundai Wia L400LC

Features

  • Box guideways on all axis ensuring high rigidity in heavy cutting conditions
  • All-in-one type structure with direct link for high accuracy and sturdiness
  • Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
  • Minimized spindle thermal distortion
  • Two-Step gear box drives the main spindle across the L400 series. (L400MA : Belt)
  • Big Bore Spindle (L400C Series)

Specifications

DescriptionUnitL400CL400LC
Max Turning Diamm630630
Max Turning Lengthmm1,1702,120
Chuck Sizeinch15″15″
Driving MethodGEARGEAR
Spindle RPMr/min2,0002,000
Spindle OutputkW26/2237/30
Spindle TorqueN.m1,753/1,4833,073/2,490
Travel(X/Z)mm325/1,205320/2,200
Rapid Travel(X/Z)m/min20/2520/20
Slide TypeBOXBOX
No. of ToolsEA1010
Tool Sizemm32/5032/50

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
