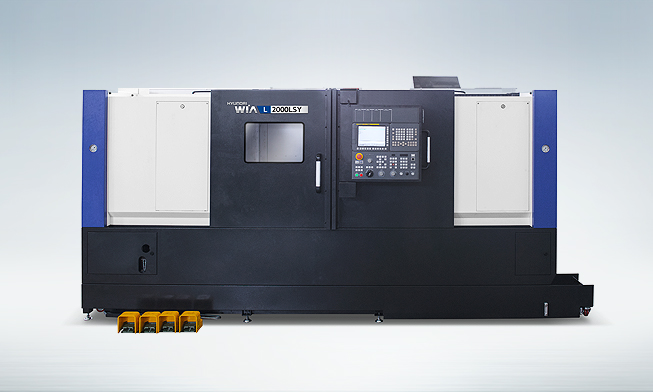

Hyundai Wia L2000Y

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

In stock

DESCRIPTION UNIT L2000Y
Max Turning Dia inch 16.5″
Max Turning Length inch 20.5″
Chuck Size inch 8″
Driving Method – Built in
Spindle RPM r/min 5,000
Spindle Output (max/ cont.) hp 30/25
Spindle Torque (max/ cont.) ft.lb 158 /264
Travel(X/Y/Z) inch 10.4″ / 4.7″ / 23.2″
Travel(X/Y/Z/ZB) inch –
Rapid Travel(X/Y/Z) in/min 1181/394/1181
Rapid Travel(X/Y/Z/ZB) in/min –
Slide Type – BOX
No. of Tools EA 12
Tool Size (ID / OD) inch 1″ / 2″
Milling Tool Speed r/min 5,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , , , Tag:

Hyundai Wia L2000Y

Features

  • Cycle time reducing structure for maximum productivity
  • Multi-tasking operation with wedge type Y-axis BMT65P turret
  • Integrated processing through synchronized control of Main/Sub spindle (“S” Type)
  • High performance heavy duty cutting enabled with box guideways
  • Improved maintenance through locating lubrication mechanisms on the front of machine

Specifications (metric)

DESCRIPTION UNIT L2000Y L2000LY L2000SY L2000LSY
Max Turning Dia mm 420 420 420 420
Max Turning Length mm 520 760 520 760
Chuck Size inch 8″ 8″ Main 8″
Sub 6″		 Main 8″
Sub 6″
Driving Method – Built in Built in Built in Built in
Spindle RPM r/min 5,000 5,000 5,000 5,000
Spindle Output kW 18.5/22 18.5/22 18.5/22 18.5/22
Spindle Torque N.m 214/358 214/358 214/358 214/358
Travel(X/Y/Z) mm 265/120/590 265/120/830 – –
Travel(X/Y/Z/ZB) mm – – 265/120/590/590 265/120/830/830
Rapid Travel(X/Y/Z) m/min 30/10/30 30/10/30 – –
Rapid Travel(X/Y/Z/ZB) m/min – – 30/10/30/30 30/10/30/30
Slide Type – BOX BOX BOX BOX
No. of Tools EA 12 12 12 12
Tool Size mm 25/50 25/50 25/50 25/50
Milling Tool Speed r/min 5,000 5,000 5,000 5,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Specifications

DESCRIPTION UNIT L2000Y L2000LY L2000SY L2000LSY
Max Turning Dia inch 16.5″
Max Turning Length inch 20.5″ 30″ 20.5″ 30″
Chuck Size inch 8″ Main 8″
Sub 6″
Driving Method – Built in
Spindle RPM r/min 5,000
Spindle Output (max/ cont.) hp 30/25
Spindle Torque (max/ cont.) ft.lb 158 /264
Travel(X/Y/Z) inch 10.4″ / 4.7″ / 23.2″ 10.4″ /4.7″ / 32.6″ – –
Travel(X/Y/Z/ZB) inch – – 10.4″ / 4.7″ / 23.2″ / 23.2″ 10.4″ / 4.7″ / 32.6″/ 32.6″
Rapid Travel(X/Y/Z) in/min 1181/394/1181 – –
Rapid Travel(X/Y/Z/ZB) in/min – – 1181/394/1181/1181
Slide Type – BOX
No. of Tools EA 12
Tool Size (ID / OD) inch 1″ / 2″
Milling Tool Speed r/min 5,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
