Specifications
Description Unit TS100 CAPACITY Max. / Swing over saddle mm(in) 330 mm (Ø12.99″) Max. Turning Dia. mm(in) 200 mm (7.87″) Max. Turning Length mm(in) 305 mm (12″) Bar Capacity mm(in) 32 mm (1.25’) SPINDLE Chuck Size (in) (6″) Hole through spindle mm(in) 41mm (1.61″) Spindle Speed (rpm) r/min 60~6,000 Motor output ( cont. / 30 min.) HP/kW 6.57 HP (4.9kW) Motor (Max/Cont.) kW(HP) 5.5/3.7 (7.4/5) Torque (Max/Cont.) N.m Spindle Type – BELT Spindle Nose – A2-5 FEED Travel (X/Z) mm(in) 12” (305 mm) Rapid Travel (X/Z) m/min 24m/min Slide Type – Box way X-axis servo motor HP (KW) 1 HP ( 0.75 kW) Z-axis servo motor HP (KW) 1 HP ( 0.75 kW) BLOCK TOOL No. of Tool / Stations EA 8 Tool Size OD mm(in) ID mm(in) TANK CAPACITY Coolant Tank Gallon / litre 21 gal (80L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 1,605 X 1,328 X 1,650 mm
(63.18″ X 52.28″ X 64.96)Weight kg(lb) 1,750 (3,850) NC Controller FANUC Oi-Mate TD -
Description Unit KIT250 CAPACITY Swing Over the Bed in 12.6″ Max. Turning Dia. in 6.3″ Max. Turning Length in 5.9″ Bar Capacity in 1.3″ SPINDLE Chuck Size in 5.3″ Spindle Bore in 1.65″ Spindle Speed (rpm) r/min 50~7,000 Motor (Max/Cont.) kW(HP) 5.5/3.7 (7.4/5) Torque (Max/Cont.) ft.lb 35.4/23.9 Spindle Type – BELT Spindle Nose – FLAT ø110 FEED Travel (X/Z) in 9.8″/7.9″ Rapid Travel (X/Z) in/min 945/1181 Slide Type – LM GUIDE BLOCK TOOL No. of Tool EA 4 Tool Size OD in 1″ ID in 1″ TANK CAPACITY Coolant Tank ℓ(gel) 95 (25.1) Lubricating Tank ℓ(gel) 1.8 (0.48) POWER SUPPLY Electric Power Supply kVA 20 Thickness of Power Cable Sq OVER 16 Voltage V/Hz 220/60 (200/50) MACHINE Floor Space (L×W) in 66″×66″ in 66.1″×66.8″ Height in 61.8″ Weight kg(lb) 1,900 (4,189) NC Controller HYUNDAI WIA FANUC i Series -

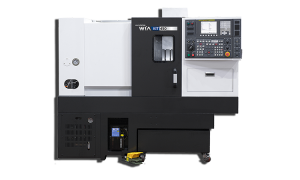

Description Unit KIT450 CAPACITY Swing Over the Bed in 20.9″ Max. Turning Dia. in 6.5″ Max. Turning Length in 12.8″ Bar Capacity in 1.8″ SPINDLE Chuck Size in 6.5″ Spindle Bore in 2.05″ [ø 2.09″] Spindle Speed (rpm) r/min 50~6,000 Motor (Max/Cont.) kW(HP) 15/11 (20/15) [12/9 (16/12)] Torque (Max/Cont.) ft.lb 70 / 51 Spindle Type – BELT Spindle Nose – A2-5 FEED Travel (X/Z) mm(in) 450/300 (17.7″/11.8″) Rapid Travel (X/Z) in/min 1181 / 1417 Slide Type – LM GUIDE BLOCK TOOL No. of Tool EA 6 Tool Size OD in 1″ ID in 1.25″ TANK CAPACITY Coolant Tank ℓ(gel) 120 (31.7) Lubricating Tank ℓ(gel) 1.8 (0.48) POWER SUPPLY Electric Power Supply kVA 20 Thickness of Power Cable Sq OVER 16 Voltage V/Hz 220/60 (200/50) MACHINE Floor Space (L×W) mm 2,100×1,435 in (82.7″×56.5″) Height in 72″ Weight kg(lb) 2,700 (5,952) NC Controller HYUNDAI WIA FANUC i Series [SIEMENS 802D sl] -
DESCRIPTION UNIT E160LMA Max Turning Dia inch 7.5″ Max Turning Length inch 17.7″ Chuck Size inch 6″ Driving Method – Belt Spindle RPM r/min 6,000 Spindle Output HP 15/20 Spindle Torque lbf.ft 38.7/70.4 Travel(X/Z) inch 6.5″/18.1″ Rapid Travel(X/Z) in/min 1181 / 1181 Slide Type – LM No. of Tools EA 12 Tool Size (ID/OD) inch 0.75″/1.25 Milling Tool Speed r/min 4,500 Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog. -
Specifications
Description Unit GTH2000 CAPACITY Swing Over the Bed mm(in) Ø600 (23.6″) Max. Turning Dia. mm(in) Ø 300 mm ( Ø 11.8″ ) Std. Turning Length mm(in) Ø 260 mm ( Ø 10.2″ ) Max. Turning Lenght mm(in) Ø 205 mm ( 8.1″ ) SPINDLE Chuck Size in 10″ Spindle Bore mm(in) Ø 66 mm ( Ø 2.6″ ) Spindle Speed (rpm) r/min 24 ~ 4,000 rpm Motor (Max/Cont.) kW(HP) 11 / 15 kW ( 15 / 20 HP ) Torque (Max/Cont.) N.m 70/47.7(51.6/35.2) [69/57.3(50.8/42.2)] Spindle Type – Direct Belt Drive Spindle Nose – A2-6 FEED Travel (X/Z) mm(in) 195 / 220 mm ( 7.7″ / 8.6″ ) Rapid Travel (X/Z) m/min 24 m/min. ( 945 IPM ) Feed rates – 0~ 500 mm/min. ( 0 ~ 19.7 IPM ) X / Z axes servo motor – AC 1.6 kW ( 2 HP ) / AC 3 kW ( 4 HP ) X / Z axes ball screw Ø / pitch – Ø 32 x P8 mm ( Ø 1.2″ x P8 ) X / Z axes thrust ( cont. ) – 644 / 958 Kgf ( 1,420 / 2,112 lbf ) Slide Type – Box way TURRET No. of Tool EA 12 Tool Size OD mm(in) Ø25 (1″) ID mm(in) Ø40 (1.6″) Indexing drive – FANUC AC Servo motor Indexing speed – 0.2 sec. ( Adjacnt ) / 0.5 sec. ( 180˚ Single step ) TANK CAPACITY Coolant Tank ℓ(gal) 160 L ( 42.3 gal ) Lubricating Tank ℓ(gal) 30 L ( 7.9 gal ) POWER SUPPLY Electric Power Supply kVA 65 kVA Thickness of Power Cable Voltage V/Hz 220/60 (200/50) MACHINE Floor Space (L×W) mm 4,840 x 2,155 in 190.6″ x 84.9″ Height mm(in) 3,450 (135.9″) Weight kg(lb) 6,800 Kg ( 14,992 lb ) NC Controller FANUC Oi -TF ( Opt. 31i ) -
HYUNDAI WIA KIT4500
Automation/Process Integration, Easy to Operate Gang Type
DESCRIPTION UNIT KIT4500 Max Turning Diameter inch 6.5″ Max Turning Length inch 11.8″ Table Size inch 7.9″×21.7″ Chuck Size inch 6″ Driving Method – Belt Spindle RPM r/min 6,000 Spindle Output HP 20/15 Spindle Torque lbf.ft 70.5/51.6 Travel(X/Z) inch 17.7″/11.8″ Rapid Travel(X/Z) in/min 1181/1417 Slide Type – LM No. of Tools EA 6 Tool Size inch 0.75″/1.25″ Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.HYUNDAI WIA KIT4500
Automation/Process Integration, Easy to Operate Gang Type
