Romi C680

Model	C680
Height of centers	13.9″
Distance between centers	79-118″
Swing over bed	27″
Swing over cross slide	17″
Main spindle nose	A2-8“/A2-11″
Max. spindle speeds	1.800 rpm
AC main motor	45 hp / 33.6 kw

Romi C680

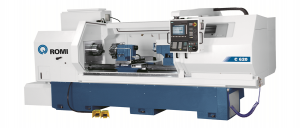

Romi C620

Specifications

Model	C620
Height of centers	12.2 “
Distance between centers	39-79″
Swing over bed	24.5″
Swing over cross slide	13.6″
Main spindle nose	A2-8”
Max. spindle speeds	1.800 rpm
AC main motor	25 hp / 18.5 kw

Romi C620

Romi C510

Specifications

Model	C510
Height of centers	10.2″
Distance between centers	59″
Swing over bed	20.5″
Swing over cross slide	10″
Main spindle nose	A2-6” / A2-8”
Max. spindle speeds	3.000/2.200 rpm
AC main motor	15 hp / 11 kw

Romi C510

ROMI C420

Specifications

Model	C420
Height of centers	8.5″
Distance between centers	39″
Swing over bed	17″
Swing over cross slide	7.85″
Main spindle nose	A2-5″/A2-6″
Max. spindle speeds	4.000 rpm
AC main motor	12.5 hp / 9 kw

ROMI C420

Hexagon Leitz Reference BX

Features & Benefits

Reduced cycle times
Leitz Reference BX combines an integrated rotary table, multisensor capability, and automated sensor exchange to save time by increasing accessibility to a part’s surface and removing the delays of manual probe changes. The machine’s cutting-edge technology can reduce cycle times by up to 50%.

Maximum accuracy
The Precitec S3 optical sensor offers ultra-precise non-contact measurement ideal for reflective and curved surfaces and sensitive material or very demanding new materials like carbon fibre composites. The tactile HP-S-X1C scanning probe is idea for inspecting surfaces with the tightest of tolerances and offers excellent feature accessibility with extension lengths ranging from 20 to 225 mm.

Complete Part Accessibility
The combination of a rotary Table, horizontally fixed sensors and SENMATION allow the user to inspect the entire part faster without having to stop between part set-ups or probe changes.

Read more
Hexagon Leitz Reference BX

Leitz Reference Xi

Technical Data

CMM Specifications and Gear InspectionCMM Specifications

Model	X stroke [in]	Y stroke [in]	Z stroke [in]
5.4.3	19.685″	15.748″	11.811″
7.7.5	27.5591″	27.5591″	19.685″
10.7.6	3.93701″	27.5591″	22.8346″
12.9.7	47.24409″	35.4331″	27.1654″
15.9.7	59.05512″	35.4331″	26.378″
20.9.7	78.74016″	35.4331″	27.1654″
15.12.10	59.05512″	47.24409″	39.3701″
22.12.10	86.61417″	47.24409″	39.3701″
30.12.10	118.1102″	47.24409″	39.3701″
40.12.10	177.1654″	47.24409″	39.3701″
45.12.10	177.1654″	47.24409″	39.3701″
30.15.10	118.1102″	59.05512″	39.3701″
26.15.14	102.3622″	59.05512″	53.14961″
33.15.14	129.9213″	59.05512″	53.14961″

Gear Inspection

Cylindrical gears:

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum no. of teeth: 1)
Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Curvic Couplings

Gear cutting tools:

Hob cutter, broach, shaper cutter, shaving gears, form cutter

Available interfaces:

Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG, Depo

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Leitz Reference Xi

Hexagon Leitz Reference HP

Technical Data

CMM Specifications

Model	X stroke [in]	Y stroke [in]	Z stroke [in]
5.4.3	19.685″	15.748″	11.811″
7.7.5	27.5591″	27.5591″	19.685″
10.7.6	3.93701″	27.5591″	23.2283″
12.9.7	47.24409″	35.4331″	27.5591″
15.9.7	59.05512″	35.4331″	26.7717″
20.9.7	78.74016″	35.4331″	27.5591″
15.12.9	59.05512	47.24409″	35.4331″
22.12.9	86.61417″	47.24409″	35.4331″
30.12.9	118.1102″	47.24409″	35.4331″
40.12.9	177.1654″	47.24409″	35.4331″
45.12.9	177.1654″	47.24409″	35.4331″
30.15.9	118.1102″	59.05512″	35.4331″

Gear InspectionCylindrical gears:

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum no. of teeth: 1)
Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Curving Couplings

Gear cutting tools:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Available interfaces:

Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG, Depo

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Hexagon Leitz Reference HP

Leitz Infinity
CMM Specifications

Model X stroke
[in] Y stroke
[in] Z stroke
[in]

Infinity 12.10.7 47.24409″ 39.3701″ 27.5591″

Max table load: 750kg.

Gear Inspection

Applications

Cylindrical gears:

Spur, helical, double helical, splines (internal and external)

Clutch gears (internal and external)

Gear segments (minimum No. of teeth: one)

Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Gleason GAGE 4/WIN; Klingelnberg KIMOS; DMG

Gear cutting tools:

Hob cutter, broach, shaper cutter, shaving gears, form cutter

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Max. gear weight 750 kg

Module range 0.019685″ – 3.93701″

Max. gear width 27.5591″

Max. shaft length 47.24409″

Max. gear diameter Spur gears: 37.4016″
helical gears: 27.5590551″ (depending on module and styli configuration)
Read more
Leitz Infinity

Hexagon Leitz PMM-Xi

CMM Specifications

Model	X stroke [in]	Y stroke [in]	Z stroke [in]
8.10.6	31.4961″	39.3701″	22.6378″
12.10.6	47.24409″	39.3701″	22.6378″
12.10.7	47.24409″	39.3701″	22.6378″
16.12.7	62.99213″	47.24409″	27.5591″
24.12.7	94.48819″	47.24409″	27.5591″
24.16.7	94.48819″	62.99213″	27.5591″
16.12.10	62.99213″	47.24409″	39.3701″
24.12.10	94.48819″	47.24409″	39.3701″
24.16.10	94.48819″	62.99213″	39.3701″

Gear Inspection

Applications
Cylindrical gears

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum no. of teeth: one)
Gear racks

Bevel gears

Straight bevel, spiral bevel, hypoid bevel, crown gears
Interfaces: Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG

Gear cutting tools

Hob cutter, broach, shaper cutter, shaving gears, form cutter

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Gear inspection with Leitz PMM-Xi Related Specifications	PMM-Xi 8.10.6	PMM-Xi 12.10.6 12.10.7	PMM-Xi 16.12.7 24.12.7	PMM-Xi 16.12.10 24.12.10	PMM-Xi 24.16.7 24.16.10
Modul range [in]	0.019685″ – 3.93701″ (smaller modules on request)
Max. gear diam. – spur [in]	29.5276″	37.4016″	45.27559″	45.27559″	61.02362″
Max. gear diam. – helical* [in]	19.685″	27.5591″	35.4331″	35.4331″	51.1811″
Max. gear width [in]	22.6378″	27.5591″	27.5591″	39.3701″	27.5591″ / 39.3701″
Max. shaft length [in]	39.3701″	47.24409″	62.99213″ / 94.48819″	62.99213″ / 94.48819″	94.48819″

* Depending on styli configuration and module

Hexagon Leitz PMM-Xi

Hexagon Leitz PMM-C

CMM Specifications

Model	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
8.10.6	800	1000	575
12.10.6	1200	1000	575
12.10.7	1200	1000	700
16.12.7	1600	1200	700
24.12.7	2400	1200	700
24.16.7	2400	1600	700
16.12.10	1600	1200	1000
24.12.10	2400	1600	1000
24.16.10	2400	1600	1000

Gear Inspection

Applications

Cylindrical gears:

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum No. of teeth: 1)
Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears
Interfaces: Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG

Gear cutting tool:

Hob cutter, broach, shaper cutter, shaving gears, form cutter

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Gear inspection with Leitz PMM-C Related Specifications	PMM-C 8.10.6	PMM-C 12.10.6 12.10.7	PMM-C 16.12.7 24.12.7	PMM-C 16.12.10 24.12.10	PMM-C 24.16.7 24.16.10
Module range [mm]	0.5 – 100 (smaller modules on request)
Max. gear diam. – spur [mm]	750	950	1150	1150	1550
Max. gear diam. – helical* [mm]	500	700	900	900	1300
Max. gear width [mm]	575	575/700	700	1000	700 / 1000
Max. shaft length [mm]	1000	1200	1600 / 2400	1600 / 2400	2400

^{* Depending on styli configuration and module}

Hexagon Leitz PMM-C

Leitz PMM-F

CMM Specifications and Gear Inspection

Temperature range 18°C – 22°C

Modell	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
30.20.10	3000	2000	1000
30.20.16	3000	2000	1600

Temperature range 18°C – 24°C

Modell	X stroke [mm]	Y stroke [mm]	Z stroke [mm]
30.20.10	3000	2000	1000
30.20.16	3000	2000	1600

Gear Inspection

Cylindrical gears:

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum No. of teeth: 1)
Gear racks

Bevel gears:

Straight bevel, spiral bevel, hypoid bevel, crown gears

Available interfaces:

Gleason GAGE 4/WIN; Klingelnberg KIMOS; bevel-gear-chain from University of Aachen, Depo

Gear cutting tools:

Hob cutter, broach, shaper cutter, shaving gear, form cutter

Evaluation standards:

DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT

Leitz PMM-F gear inspection systems – Related specifications	PMM-F 30.20.10	PMM-F 30.20.16
Modul range [mm]	0,5 – 100	0,5 – 100
Max. gear dia. – spur [mm]	1950	1950
Max. gear dia. – helical* [mm]	1600	1600
Max. shaft length [mm]	3000	3000

*The max. gear diameter depends on modul and styli configuration.

Leitz PMM-F

DEA LAMBDA SP

Specifications

Measuring Range (in mm)

X Y Z

4000 – 5000 – 6000 5100 – 6300 – 8000 – 10000 2500 – 3000 – 3500 – 4000

Accuracy: MPEE = from 5.5 + 6 L/1000 < 30

Read more
DEA LAMBDA SP

Measuring Range (in mm)
X	Y	Z
4000 – 5000 – 6000	5100 – 6300 – 8000 – 10000	2500 – 3000 – 3500 – 4000
Accuracy: MPEE = from 5.5 + 6 L/1000 < 30
