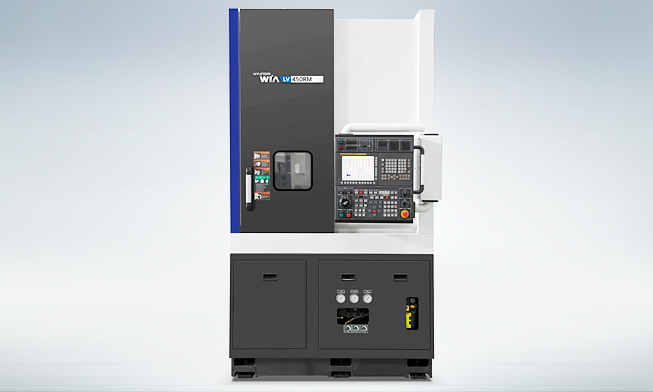

Hyundai Wia LV450R/L

In stock

Specifications

DescriptionUnitLV450R/LLV450RM/LM
Max Turning Diain18.318.3
Max Turning Lengthin18.318.3
Chuck Sizein12″12″
Driving MethodBeltBelt
Spindle RPMr/min3,0003,000
Spindle OutputkW18.5/2218.5/22
Spindle TorqueN.m614/730614/730
Travel(X/Z)in12.2/19.512.2/19.5
Rapid Travel(X/Z)in/min787/945787/945
Slide TypeLMLM
No. of ToolsEA1212
Tool Sizemm25/5025/50
Milling Tool Speedr/min4,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Hyundai Wia LV450R/L

Features

  • Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
  • High/Low chucking to minimize material deformation is a standard feature
  • Designed for easy addition of automation and other peripheral accessories
  • This phrase doesn’t make any sense even in Korean. It needs to be deleted.
  • Minimal footprint for use of less shop floor space and ease of transportation
  • Available in “Right” and “Left” hand configurations to minimize pitch between spindle centerlines for ease of operation and the addition of automation
