Specifications
TTC300-52 TTC300-65 Swing Diameter 15.75″ 15.75″ Max. Turning Diameter 7.87″ 7.87″ Max. Turning Length 15.75″ 15.75″ X1 / X2/ Z-axis 7.1 / 4.33 / 17.72 in 7.1 / 4.33 / 17.72 in Y-axis (option) +1.57 / -1.57 in +1.57 / -1.57 in Axes Rapid Traverse X / Y / Z 590.5 / 590.5 / 944.9 inch/min 590.5 / 590.5 / 944.9 inch/min Spindle 1 Max. Spindle Speed 5000 rpm 4000 rpm (option 5000rpm) Spindle Nose A6/DIN A8/DIN Chuck Diameter 8.27″ 9.84″ Bar Capacity 2.05″ 2.56″ Performance Pmax 31.5 HP 45.6 HP Max Torque 111 ft-lb 240 ft-lb Spindle 2 Max. Spindle Speed 7000 rpm 7000 rpm Spindle Nose 3.94″ 3.94″ Chuck Diameter 6.50″ 26.50″ Spindle Bore 1.65″ 1.65″ Performance Pmax 18.5 HP 18.5 HP Max Torque 139.4 lb/ft 139.4 lb/ft Turret Number of tools stations 12 + 12 (BMT45) 12 + 12 (BMT45) Number of driven tools (options) all all Toolholder BMT45 BMT45 Max. Speed of Driven Tools 6000 rpm 6000 rpm Performance Pmax 22.1 HP 22.1 HP Max Torque 25.8 ft-lb 25.8 ft-lb General Dimensions L x W x H 98.4 x 74.8 x 85.24 in 106.3 x 74.8 x 85.24 in Weight 10,150 lbs 11,255 lbs -
Specifications
T600-65 T600-85 Swing Diameter 23.6″ 23.6″ Max. Turning Diameter 15.75″ 15.75″ Max. Turning Length 25.59″ 25.59″ X1 / Z-axis + 10.83″ / – 1.57″ + 10.83″ / – 1.57″ Axes Rapid Traverse X / Y / Z 590.5 / 590.5 / 944.9 inch/min 590.5 / 590.5 / 944.9 inch/min Spindle 1 Max. Spindle Speed 4000 rpm (option 5000 rpm) 3200 rpm (option 4000rpm) Spindle Nose A8/DIN A8/DIN Chuck Diameter 9.84″ 9.84″ Spindle Bore 2.56″ 3.35″ Performance Pmax 34 kW 34 kW Max Torque 240 ft-lb 240 ft-lb Spindle 2 Max. Spindle Speed 6000 rpm 6000 rpm Spindle Nose 4.33″ 4.33″ Chuck Diameter 6.5″ 6.5″ Spindle Bore 1.65″ 1.65″ Performance Pmax 15 kW 15 kW Max Torque 70 ft-lb 70 ft-lb Turret Number of tools stations 16 (BMT45) 16 (BMT45) Number of driven tools (options) all all Toolholder BMT45 BMT45 Max. Speed of Driven Tools 6000 rpm 6000 rpm Performance Pmax 16.5 kW 16.5 kW Max Torque 25.8 ft-lb 25.8 ft-lb General Dimensions L x W x H 110″ x 68.9″ x 82.3″ 110″ x 68.9″ x 82.3″ Weight 12,800 lbs 13,900 lbs -
Specifications
T600-65 T600-85 Swing Diameter 23.6″ 23.6″ Max. Turning Diameter 15.75″ 15.75″ Max. Turning Length 25.59″ 25.59″ X1 / Z-axis + 10.83″ / – 1.57″ + 10.83″ / – 1.57″ Axes Rapid Traverse X / Y / Z 590.5 / 590.5 / 944.9 inch/min 590.5 / 590.5 / 944.9 inch/min Spindle 1 Max. Spindle Speed 4000 rpm (option 5000 rpm) 3200 rpm (option 4000rpm) Spindle Nose A8/DIN A8/DIN Chuck Diameter 9.84″ 9.84″ Spindle Bore 2.56″ 3.35″ Performance Pmax 34 kW 34 kW Max Torque 240 ft-lb 240 ft-lb Spindle 2 Max. Spindle Speed 6000 rpm 6000 rpm Spindle Nose 4.33″ 4.33″ Chuck Diameter 6.5″ 6.5″ Spindle Bore 1.65″ 1.65″ Performance Pmax 15 kW 15 kW Max Torque 70 ft-lb 70 ft-lb Turret Number of tools stations 16 (BMT45) 16 (BMT45) Number of driven tools (options) all all Toolholder BMT45 BMT45 Max. Speed of Driven Tools 6000 rpm 6000 rpm Performance Pmax 16.5 kW 16.5 kW Max Torque 25.8 ft-lb 25.8 ft-lb General Dimensions L x W x H 110″ x 68.9″ x 82.3″ 110″ x 68.9″ x 82.3″ Weight 12,800 lbs 13,900 lbs -
Specifications
Model TC300 Max swing diameter 15.7″ Max turning diameter 7.9″ Max turning length 15.7″ Stroke X 7″ Stroke Y* +/- 1.6″ Stroke Z 17.7″ Rapid traverse X-axis / Y-axis / Z-axis ( 0.6 / 0.6 / 0.9 ) inches / min Feed screw diameter x pitch X-axis 1″ x 0.2″ Feed screw diameter x pitch Y-axis 1″ x 0.2″ Feed screw diamter x pitch Z1-axis 1.6″ x 0.4″ Feed screw diamter x pitch Z2-axis* 1.6″ x 0.2″ *Option
-

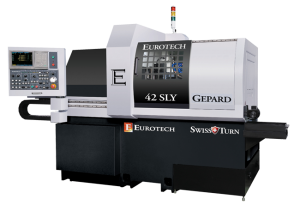

Model 20 SLY 32 SLY 42 SLY Max. Turning Diameter 1.0″ 1.378” 1.63” Max. Machining Len. per chucking 10.55” 10.55” 10.55” Max. Drilling Diameter 0.79″ 0.79″ 0.79″ Max. Tapping Diameter M16 M16 M16 OD Tooling ( Slide 1 ) Number of Tools 7 7 7 Dimension ER20 ER20 ER20 ID Tooling ( Slide 2 ) Number of Tools 3 3 3 Dimension ER20 ER20 ER20 ID Driven Tooling ( Slide 1 ) Number of Tools 6 6 6 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 2 HP 2 HP 2 HP 360 Degrees Working Driven Tooling ( Slide 1 ) Number of Tools 8 8 8 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 1.5 HP .5 HP .5 HP Back Working Tooling Number of Tools ( Static Tools ) 4 4 4 Dimension ER20 ER20 ER20 Number of Tools ( Live Tools ) 3 3 3 Dimension ER20 ER20 ER20 Horsepower 1.5 HP 1.5 HP 1.5 HP Main Spindle Spindle Hole Diameter 1.0” 1.48” 1.62″ Angular Movement Full C-axis Full C-axis Full C-axis Speed 8,000 rpm 8,000 rpm 8,000 rpm Horsepower 7.5 HP 7.5 HP 10 HP Back Working Sub-spindle Spindle Hole Diameter 1.0” 1.3” 1.3″ Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 9.7 HP 9.7 HP 9.7 HP -
Model 20 SLY 32 SLY 42 SLY Max. Turning Diameter 1.0″ 1.378” 1.63” Max. Machining Len. per chucking 10.55” 10.55” 10.55” Max. Drilling Diameter 0.79″ 0.79″ 0.79″ Max. Tapping Diameter M16 M16 M16 OD Tooling ( Slide 1 ) Number of Tools 7 7 7 Dimension ER20 ER20 ER20 ID Tooling ( Slide 2 ) Number of Tools 3 3 3 Dimension ER20 ER20 ER20 ID Driven Tooling ( Slide 1 ) Number of Tools 6 6 6 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 2 HP 2 HP 2 HP 360 Degrees Working Driven Tooling ( Slide 1 ) Number of Tools 8 8 8 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 1.5 HP .5 HP .5 HP Back Working Tooling Number of Tools ( Static Tools ) 4 4 4 Dimension ER20 ER20 ER20 Number of Tools ( Live Tools ) 3 3 3 Dimension ER20 ER20 ER20 Horsepower 1.5 HP 1.5 HP 1.5 HP Main Spindle Spindle Hole Diameter 1.0” 1.48” 1.62″ Angular Movement Full C-axis Full C-axis Full C-axis Speed 8,000 rpm 8,000 rpm 8,000 rpm Horsepower 7.5 HP 7.5 HP 10 HP Back Working Sub-spindle Spindle Hole Diameter 1.0” 1.3” 1.3″ Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 9.7 HP 9.7 HP 9.7 HP -
Model 20 SLY 32 SLY 42 SLY Max. Turning Diameter 0.78”) 1.26” 1.63” Max. Machining Len. per chucking 9.84” 9.84” 9.84” Max. Drilling Diameter 0.59″ 0.59″ 0.59″ Max. Tapping Diameter 0.47″ 0.47″ 0.47″ OD Tooling Number of Tools 6 6 6 Dimension 0.62″ x 0.62″ x 4.7″ 0.62″ x 0.62″ x 4.7″ 0.62″ x 0.62″ x 4.7″ ID Tooling Number of Tools 4 4 4 Dimension ER20 ER20 ER20 Cross Working Driven Tooling Number of Tools 4 4 4 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Front Working Driven Tooling Number of Tools 3 3 3 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Back Working ID Tooling Number of Tools 4 + 4 4 + 4 4 + 4 Dimension ER20 ER20 ER20 Back Working Driven Tooling Number of Tools (Slide 1) 3 3 3 Dimension ER16 ER16 ER16 Speed 3,000 rpm 3,000 rpm 3,000 rpm Number of Tools (Slide 2) 4 4 4 Dimension ER20 ER20 ER20 Main Spindle Spindle Hole Diameter 0.51” 1.378” 1.62″ Angular Movement Full C-axis Full C-axis Full C-axis Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 5 HP 7.5 HP 10 HP Rapid Traverse X1, Y1, Z1, X2, Z2 1,181 IPM 1,181 IPM 1,181 IPM -
Model 20 SLY 32 SLY 42 SLY Max. Turning Diameter 0.78”) 1.26” 1.63” Max. Machining Len. per chucking 9.84” 9.84” 9.84” Max. Drilling Diameter 0.59″ 0.59″ 0.59″ Max. Tapping Diameter 0.47″ 0.47″ 0.47″ OD Tooling Number of Tools 6 6 6 Dimension 0.62″ x 0.62″ x 4.7″ 0.62″ x 0.62″ x 4.7″ 0.62″ x 0.62″ x 4.7″ ID Tooling Number of Tools 4 4 4 Dimension ER20 ER20 ER20 Cross Working Driven Tooling Number of Tools 4 4 4 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Front Working Driven Tooling Number of Tools 3 3 3 Dimension ER20 ER20 ER20 Speed 6,000 rpm 6,000 rpm 6,000 rpm Back Working ID Tooling Number of Tools 4 + 4 4 + 4 4 + 4 Dimension ER20 ER20 ER20 Back Working Driven Tooling Number of Tools (Slide 1) 3 3 3 Dimension ER16 ER16 ER16 Speed 3,000 rpm 3,000 rpm 3,000 rpm Number of Tools (Slide 2) 4 4 4 Dimension ER20 ER20 ER20 Main Spindle Spindle Hole Diameter 0.51” 1.378” 1.62″ Angular Movement Full C-axis Full C-axis Full C-axis Speed 6,000 rpm 6,000 rpm 6,000 rpm Horsepower 5 HP 7.5 HP 10 HP Rapid Traverse X1, Y1, Z1, X2, Z2 1,181 IPM 1,181 IPM 1,181 IPM -

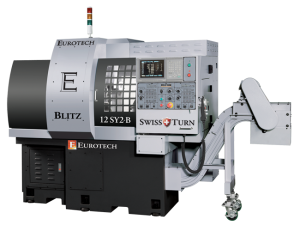

Model 12 SY2-B 16 SY2-B Max Turning Diameter .5” 0.65” Max. Machining Length per chucking 5.91” 5.91” Max Drilling Diameter 0.28″ 0.39″ Max Tapping Diameter M6 M8 OD Tooling (Slide 1) Number of Tools 4 6 Dimension 0.39″ x 0.39″ x 3.9″ 0.39″ x 0.39″ x 3.9″ OD Tooling (Slide 2) Number of Tools 10 (5 and 5) 10 (5 and 5) Dimension 0.39″ x 0.39″ x 3.9″ 0.39″ x 0.39″ x 3.9″ ID Tooling (Slide 2) Number of Tools 2 2 Dimension 0.28″ (ER11) 0.39″ (ER16) Cross Working Driven Tooling Number of Tools 5 5 Dimension ER11 ER16 Speed 6,000 RPM 6,000 RPM 360 Degrees Working Driven Tooling (Slide 2) Number of Tools 3 3 Dimension ER16 and ER11 ER16 and ER11 Speed 6,000 RPM 6,000 RPM Main Spindle Spindle Hole Diameter 0.51″ 0.67″ Spindle Speed 12,000 RPM 12,000 RPM Angular movement Full C axis Full C axis Horsepower 2 HP 2.5 HP Back Working Spindle Spindle Hole Diameter 0.51″ 0.67″ Spindle Speed 12,000 RPM 12,000 RPM Max Length for front eject 5.9″ 5.9″ Horsepower 2 HP 2.5 HP Rapid Traverse X1, Y1, Z1, Z2 1,181 IPM 1,181 IPM -

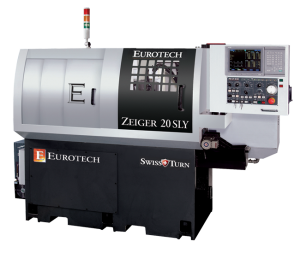

Model 20 SLY 32 SLY Max Turning Diameter 20mm (.78”) 33mm (1.30”) Max. Machining Length per chucking 250mm (9.84”) 250mm (9.84”) Max Drilling Diameter 10mm 15mm Max Tapping Diameter 8mm 10mm OD Tooling Number of Tools 6 6 Dimension 12mm x 12mm x 100mm 16mm x 16mm x 120mm ID Toooling Number of Tools 4 4 Dimension ER16 ER20 Cross Working Driven Tooling Number of Tools 6 6 Dimension ER16 ER20 Speed 6,000 RPM 6,000 RPM Front Working Driven Tooling Number of Tools 3 3 Dimension ER16 ER20 Speed 3,000 RPM 3,000 RPM Back Working ID Tooling Number of Tools 4 4 Dimension ER16 ER20 Speed – – Back Working Number of Tools 3 3 Dimension ER11 ER16 Main Spindle Spindle Hole Diameter 20mm (.78”) 36mm (1.42”) Spindle Speed 10,000 RPM 8,000 RPM Angular movement Full C axis Full C axis Horsepower 5 HP 7.5 HP Back Working Spindle Spindle Hole Diameter 20mm (.78”) 36mm (1.42”) Spindle Speed 7,500 RPM 6,000 RPM Max Length for front eject 220mm (8.66”) 220mm (8.66”) Horsepower 5 HP 7.5 HP Rapid Traverse X1, Y1, Z1, Z2 709 IPM 709 IPM
The Eurotech Factory opened in 1958. With steady growth since its founding, the manufacturing floor has grown to 350,000 square feet, plus the foundry square footage of 700,000.
A family-owned business since its founding in 1958 with the same family running it today and machines built in the same location. “Big enough to do the job and small enough to care.”
We don’t just assemble the machines, we make them! …from pouring the castings,
machining the castings, making our own turrets, to painting the machines.
