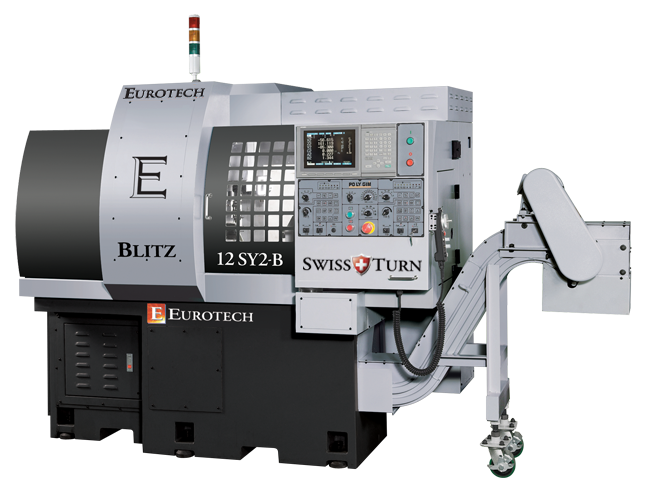

| Model | 12 SY2-B | 16 SY2-B |
| Max Turning Diameter | .5” | 0.65” |
| Max. Machining Length per chucking | 5.91” | 5.91” |
| Max Drilling Diameter | 0.28″ | 0.39″ |
| Max Tapping Diameter | M6 | M8 |
| OD Tooling (Slide 1) | ||
| Number of Tools | 4 | 6 |
| Dimension | 0.39″ x 0.39″ x 3.9″ | 0.39″ x 0.39″ x 3.9″ |
| OD Tooling (Slide 2) | ||
| Number of Tools | 10 (5 and 5) | 10 (5 and 5) |
| Dimension | 0.39″ x 0.39″ x 3.9″ | 0.39″ x 0.39″ x 3.9″ |
| ID Tooling (Slide 2) | ||
| Number of Tools | 2 | 2 |
| Dimension | 0.28″ (ER11) | 0.39″ (ER16) |
| Cross Working Driven Tooling | ||
| Number of Tools | 5 | 5 |
| Dimension | ER11 | ER16 |
| Speed | 6,000 RPM | 6,000 RPM |
| 360 Degrees Working Driven Tooling (Slide 2) | ||
| Number of Tools | 3 | 3 |
| Dimension | ER16 and ER11 | ER16 and ER11 |
| Speed | 6,000 RPM | 6,000 RPM |
| Main Spindle | ||
| Spindle Hole Diameter | 0.51″ | 0.67″ |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Angular movement | Full C axis | Full C axis |
| Horsepower | 2 HP | 2.5 HP |
| Back Working Spindle | ||
| Spindle Hole Diameter | 0.51″ | 0.67″ |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Max Length for front eject | 5.9″ | 5.9″ |
| Horsepower | 2 HP | 2.5 HP |
| Rapid Traverse | ||
| X1, Y1, Z1, Z2 | 1,181 IPM | 1,181 IPM |
