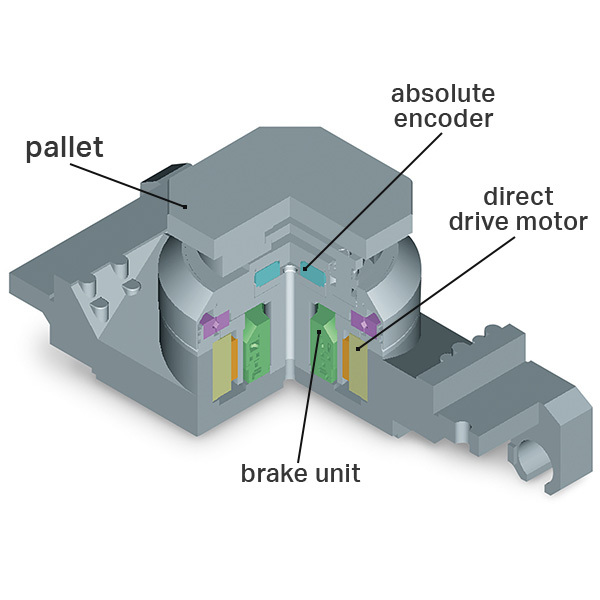

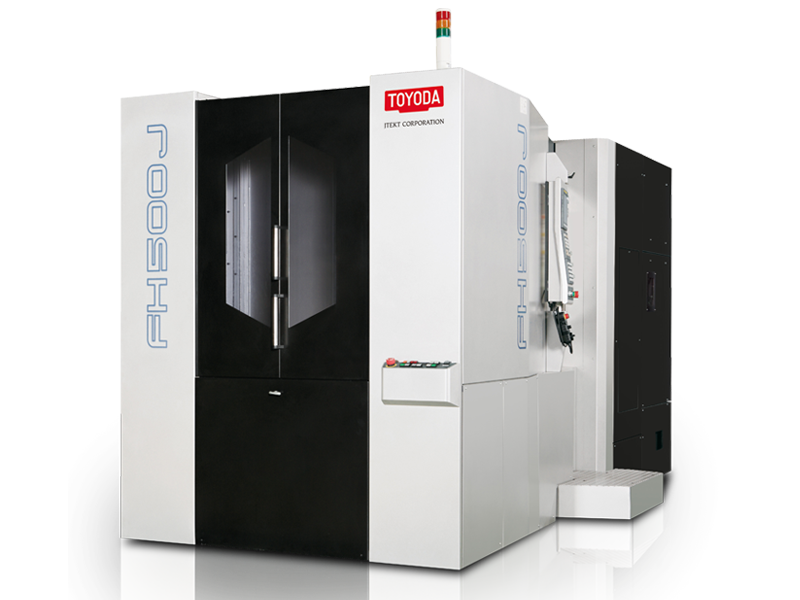

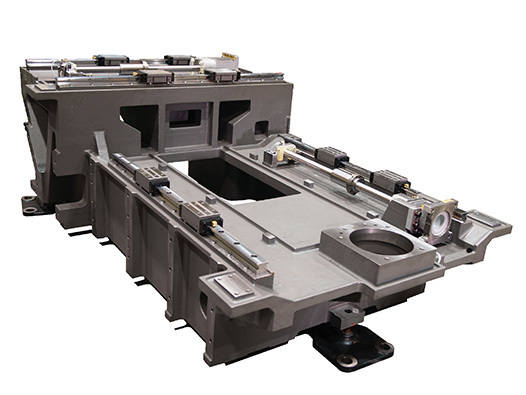

The FH500J and FH500J-50 are compact, high-speed horizontal machining centers featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min). All FH500J models (#40 & #50) taper are equipped with a Direct Drive B Axis Table, featuring an index time (90 degrees) of 0.5 seconds and 360,000 degree positioning.
FERROUS SPECS
Pallet Size
19.68″ x 19.68″ (500 mm x 500 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
28.74” (730 mm)
Y-Axis Travel
28.74” (730 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
31.50” (800 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,540 lb (700 kg)
Spindle Output Torque
295 ft-lb (400 Nm)
Available Spindle
CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (119 Optional)
Standard Floor Space
91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height
113″ (2,870 mm)
Standard Net Weight
29,700 lb (13,500 kg)
NON-FERROUS SPECS
Pallet Size
19.68″ x 19.68″ (500 mm x 500 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
28.74” (730 mm)
Y-Axis Travel
28.74” (730 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
31.50” (800 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,540 lb (700 kg)
Spindle Output Torque
123 ft-lb (167 Nm)
Available Spindle
CAT#40 30HP 15,000 RPM (0-15,000 in 1.9 sec)
Available Spindle
CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (119 Optional)
Standard Floor Space
91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height
113″ (2,870 mm)
Standard Net Weight
29,700 lb (13,500 kg)
HIGH TEMP ALLOY SPECS
Pallet Size
19.68″ x 19.68″ (500 mm x 500 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
28.74” (730 mm)
Y-Axis Travel
28.74” (730 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
31.50” (800 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,540 lb (700 kg)
Spindle Output Torque
295 ft-lb (400 Nm)
Available Spindle
CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (119 Optional)
Standard Floor Space
91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height
113″ (2,870 mm)
Standard Net Weight
29,700 lb (13,500 kg)
ACCURACY
Linear Position Accuracy
± .00012″ (.003 mm) full stroke
Linear Repeatability
± .00008″ (.002 mm)
Rotary Table Index Accuracy
± 7 arc seconds
Rotary Table Index Repeatability
± 3.5 arc seconds
REEQUIREMENTS
Hydraulic Oil
Mobil DTE Oil Light (4.75 gal)
Slideway Lubrication
Mobil Vactra #2 (1.1 gal)
Spindle Bearing Lubrication
Mobil Velocite #6 (1.1 gal)
Spindle Cooling
Mobil Velocite #3 (5.3 gal)
Table Lubrication
Mobil Gear 600 XP 150 (.79 gal)
Air Source
56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included)
