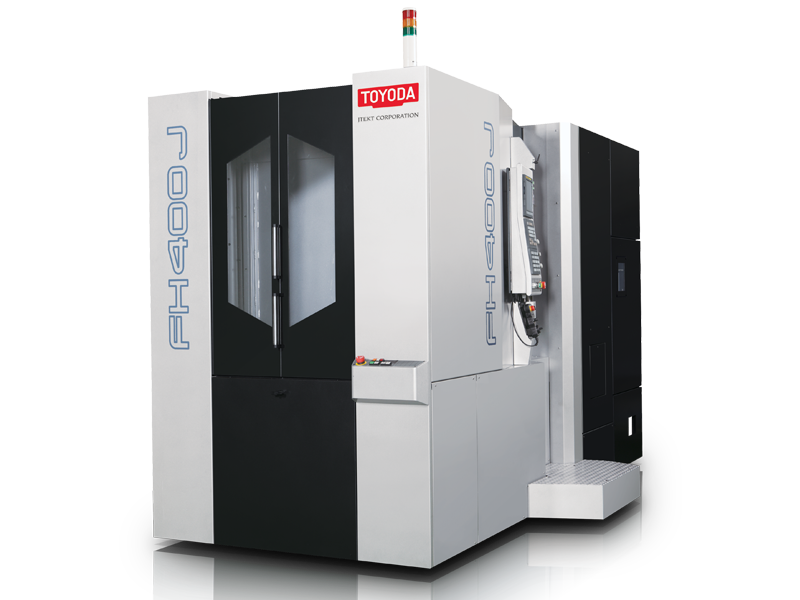

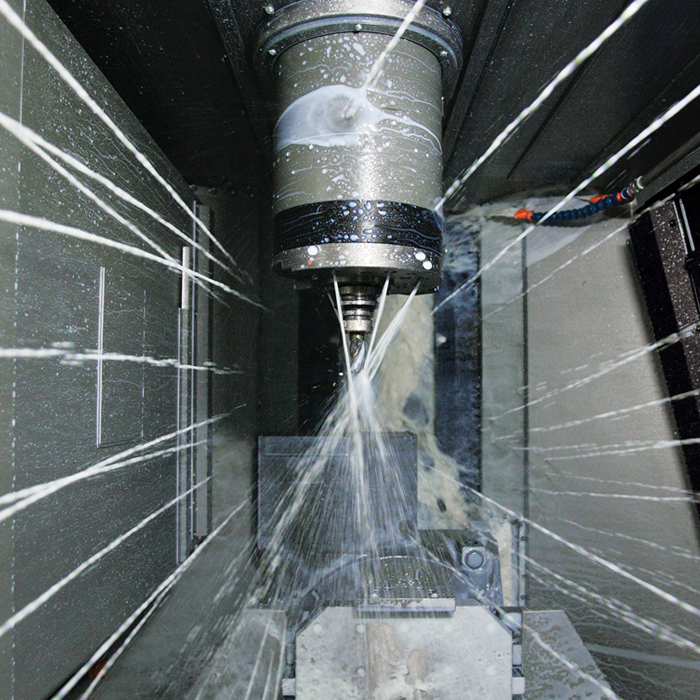

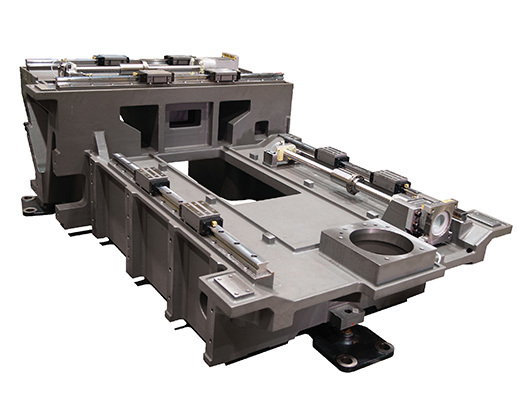

FH400J
The FH400J is a compact, high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min).
FERROUS SPECS
| Pallet Size |
15.75″ x 15.75″ (400 mm x 400 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
23.62” (600 mm) |
| Y-Axis Travel |
22.05” (560 mm) |
| Z-Axis Travel |
24.80” (630 mm) |
| Max Workpiece Swing |
24.80” (630 mm) |
| Max Workpiece Height |
35.43″ (900 mm) |
| Maximum Work Load on the Pallet |
880 lb (400 kg) |
| Spindle Output Torque |
123 ft-lb (167 Nm) |
| Available Spindle |
CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec) |
| Rapid Feedrate (X axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) |
2,362 ipm (60 m/min) |
| Tool Storage Capacity |
60 Standard (119 Optional) |
| Standard Floor Space |
83″ x 166″ (2,100 mm x 4,205 mm) |
| Machine Height |
108″ (27,735 mm) |
| Standard Net Weight |
24,200 lb (11,000 kg) |
NON-FERROUS SPECS
| Pallet Size |
15.75″ x 15.75″ (400 mm x 400 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
23.62” (600 mm) |
| Y-Axis Travel |
22.05” (560 mm) |
| Z-Axis Travel |
24.80” (630 mm) |
| Max Workpiece Swing |
24.80” (630 mm) |
| Max Workpiece Height |
35.43″ (900 mm) |
| Maximum Work Load on the Pallet |
880 lb (400 kg) |
| Spindle Output Torque |
123 ft-lb (167 Nm) |
| Available Spindle |
CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec) |
| Rapid Feedrate (X axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) |
2,362 ipm (60 m/min) |
| Tool Storage Capacity |
60 Standard (119 Optional) |
| Standard Floor Space |
83″ x 166″ (2,100 mm x 4,205 mm) |
| Machine Height |
108″ (27,735 mm) |
HIGH TEMP ALLOY SPECS
| Pallet Size |
15.75″ x 15.75″ (400 mm x 400 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
23.62” (600 mm) |
| Y-Axis Travel |
22.05” (560 mm) |
| Z-Axis Travel |
24.80” (630 mm) |
| Max Workpiece Swing |
24.80” (630 mm) |
| Max Workpiece Height |
35.43″ (900 mm) |
| Maximum Work Load on the Pallet |
880 lb (400 kg) |
| Spindle Output Torque |
123 ft-lb (167 Nm) |
| Available Spindle |
CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec) |
| Rapid Feedrate (X axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Y axis) |
2,362 ipm (60 m/min) |
| Rapid Feedrate (Z axis) |
2,362 ipm (60 m/min) |
| Tool Storage Capacity |
60 Standard (119 Optional) |
| Standard Floor Space |
83″ x 166″ (2,100 mm x 4,205 mm) |
| Machine Height |
108″ (27,735 mm) |
| Standard Net Weight |
24,200 lb (11,000 kg) |
ACCURACY
| Linear Position Accuracy |
± .00012″ (.003 mm) full stroke |
| Linear Repeatability |
± .00006″ (.0015 mm) |
| Rotary Table Index Accuracy |
± 7 arc seconds |
| Rotary Table Index Repeatability |
± 3.5 arc seconds |
REEQUIREMENTS
| Hydraulic Oil |
Mobil DTE Oil Light (4.75 gal) |
| Slideway Lubrication |
Mobil Vactra #2 (.76 gal) |
| Spindle Bearing Lubrication |
Mobil Velocite #6 (.76 gal) |
| Spindle Cooling |
Mobil Velocite #3 (4 gal) |
| Table Lubrication |
Mobil Gear 600 XP 150 (.4 gal) |
| Air Source |
56 ~ 70 psi (4 ~ 5 kgf / cm²) |
| Power Capacity (Machine Wired: 208V – Transformer Not Included) |
52 kVA |
