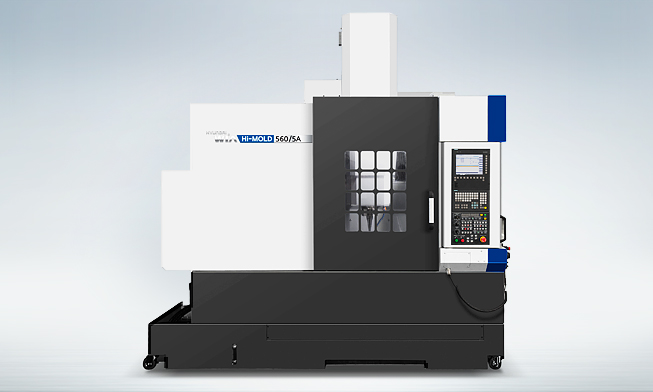

Roll over image to zoom in
Travel (X / Y / Z)
39.3″ / 22″ / 17.7″
39.3″ / 22″ / 17.7″
Specifications
| Description | Unit | Hi-MOLD560/5A |
|---|---|---|
| Table Size | inch | Ø19.7″x10.6″ |
| Max. Load Capacity | lb | 550 |
| Spindle Driving Method | – | Built in |
| Spindle Taper | – | HSK-A63 |
| Spindle RPM | r/min | 24,000 |
| Spindle Power | HP | 44/33 |
| Spindle Torque | lbf.ft | 70.8/53.4 |
| Travel(X/Y/Z) | inch | 39.3″/22″/17.7″ |
| Travel(A/C) | deg | +30° ~ -120°/360° |
| Rapid Feed Rate(X/Y/Z) | m/min | 50/50/50 |
| Rapid Feed Rate(A/C) | r/min | 100/170 |
| Slide Type | – | LM |
| No. of Tools | EA | 24 |
| Tool Change Time (Chip To Chip) |
sec | 5.5 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
