Travel (X/Y/Z)
(120.5"/47.2"/31.5")
(120.5"/47.2"/31.5")

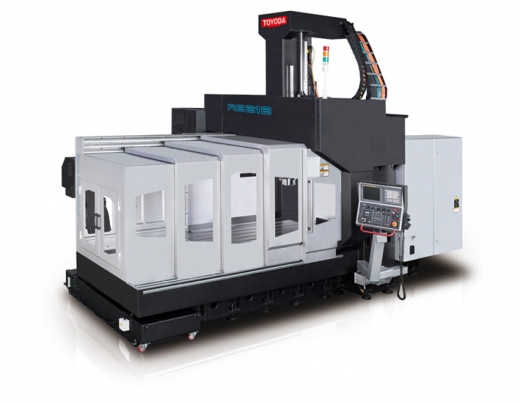

| Model | RB 212 |
|---|---|
| Table Size | 118″ x 43.3″ (3,000 mm x 1,100 mm) |
| X-Axis Travel | 120.5″ (3,060 mm) |
| Y-Axis Travel | 47.2″ (1,200 mm) |
| Z-Axis Travel | 31.5″ (800 mm) |
| Distance from Spindle Nose to Table Top | 5.9″ to 37.4″ (150 mm to 950 mm) |
| Distance Between Columns | 51.2″ (1,300 mm) |
| Maximum Table Load | 9,900 lb (4,500 kg) |
| Linear Position Accuracy | ± 0.0006″ (0.015 mm) full travel |
| Linear Repeatability | Linear Repeatability |
| Coolant Tank Capacity | 132 gallon |
| Air Source | 90 psi @ 3.78 CFM |
| Total power Required | AC 220V ±10% (60 kVA) |
| STEEL | |
| ALLOY | |
| STAINLESS STEEL |
Specifications subject to change without notice.
