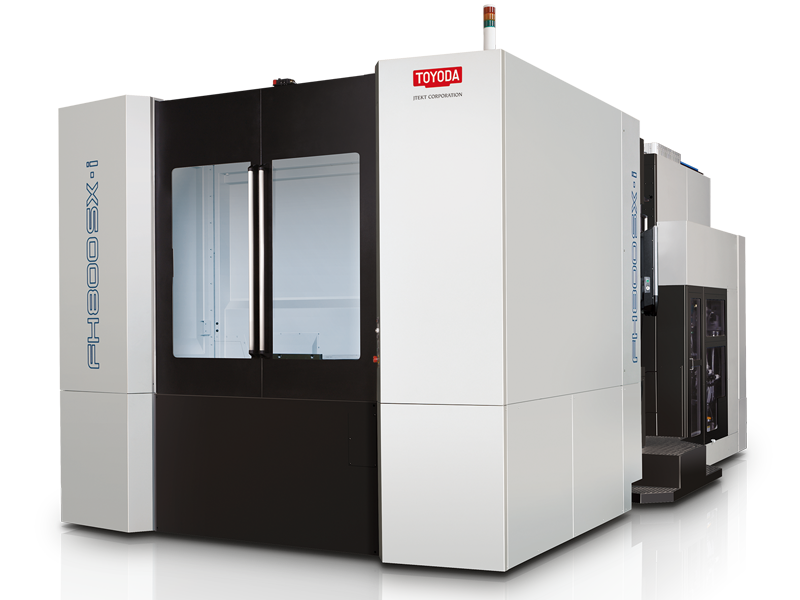

Toyoda FH800SX-i

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

In stock

FERROUS SPECS

Pallet Size 31.5” x 31.5” (800 mm x 800 mm)
Table Index Full NC table (360,000 positions)
X-Axis Travel 57.1” (1,450 mm)
Y-Axis Travel 49.2” (1,250 mm)
Z-Axis Travel 61” (1,550 mm)
Max Workpiece Swing 59.06” (1,500 mm)
Max Workpiece Height 59.06” (1,500 mm)
Maximum Work Load on the Pallet 5,500 lb (2,500 kg)
Spindle Output Torque 391 ft-lb (530 Nm)
Available Spindle CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis) 2,127 ipm (54 m/min)
Tool Storage Capacity 60 Standard (121 Optional)
Standard Floor Space 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height 145″ (3,680 mm)
Standard Net Weight 61,600 lb (28,000 kg)

NON-FERROUS SPECS

Pallet Size 31.5” x 31.5” (800 mm x 800 mm)
Table Index Full NC table (360,000 positions)
X-Axis Travel 57.1” (1,450 mm)
Y-Axis Travel 49.2” (1,250 mm)
Z-Axis Travel 61” (1,550 mm)
Max Workpiece Swing 59.06” (1,500 mm)
Max Workpiece Height 59.06” (1,500 mm)
Maximum Work Load on the Pallet 5,500 lb (2,500 kg)
Spindle Output Torque 123 ft-lb (167 Nm)
Available Spindle CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis) 2,127 ipm (54 m/min)
Tool Storage Capacity 60 Standard (121 Optional)
Standard Floor Space 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height 145″ (3,680 mm)
Standard Net Weight 61,600 lb (28,000 kg)

HIGH TEMP ALLOY SPECS

Pallet Size 31.5” x 31.5” (800 mm x 800 mm)
Table Index Full NC table (360,000 positions)
X-Axis Travel 57.1” (1,450 mm)
Y-Axis Travel 49.2” (1,250 mm)
Z-Axis Travel 61” (1,550 mm)
Max Workpiece Swing 59.06” (1,500 mm)
Max Workpiece Height 59.06” (1,500 mm)
Maximum Work Load on the Pallet 5,500 lb (2,500 kg)
Spindle Output Torque 744 ft-lb (1,009 Nm)
Available Spindle CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis) 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis) 2,127 ipm (54 m/min)
Tool Storage Capacity 60 Standard (121 Optional)
Standard Floor Space 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height 145″ (3,680 mm)
Standard Net Weight 61,600 lb (28,000 kg)

ACCURACY

Linear Position Accuracy ± .00012” (.003 mm) full stroke
Linear Repeatability ± .00006” (.0015 mm)
Rotary Table Index Accuracy ± 7 arc seconds
Rotary Table Index Repeatability ± 3.5 arc seconds

REEQUIREMENTS

Hydraulic Oil Mobil DTE Oil Light (4.75 gal)
Slideway Lubrication Mobil Vactra #2 (.76 gal)
Spindle Bearing Lubrication Mobil Velocite #6 (.76 gal)
Spindle Cooling Mobil Velocite #3 (5.28 gal)
Table Lubrication Mobil Gear 600 XP 150 (1 gal)
Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included) 59 kVA
Categories: , ,

FH800SX-i

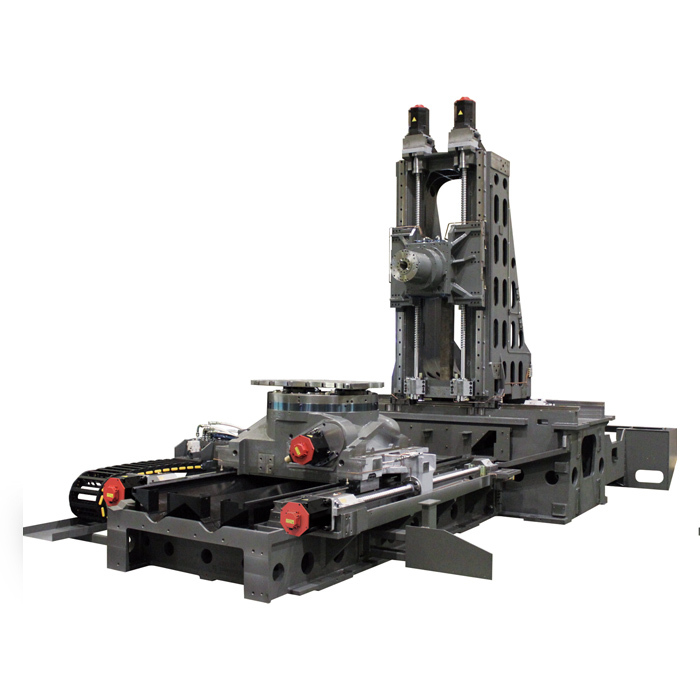

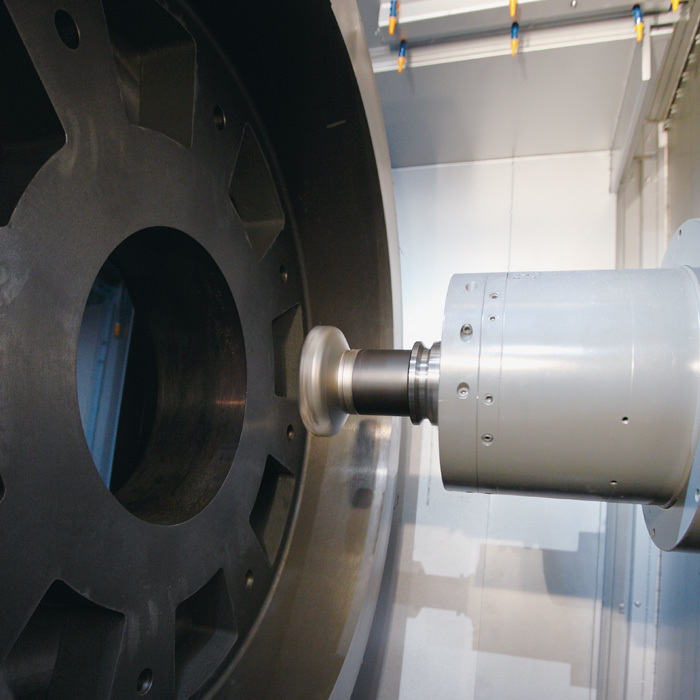

The FH800SX-i is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 2,127 ipm (54 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity. The expansive work envelope allows for large-part machining.
