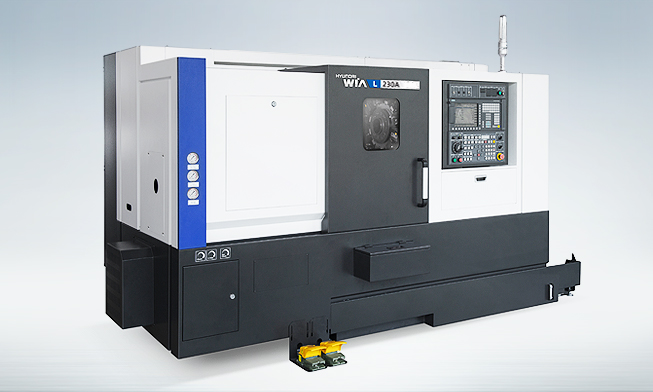

Roll over image to zoom in
Specifications
| DESCRIPTION | UNIT | KL230A |
|---|---|---|
| Max Turning Dia | inch | 14″ |
| Max Turning Length | inch | 17.3″ |
| Chuck Size | inch | 8″ |
| Driving Method | – | Belt |
| Spindle RPM | r/min | 4,000 |
| Spindle Output (Max/Cont.) | hp | 24 / 20 |
| Spindle Torque (Max/Cont.) | ft.lb | |
| Travel(X/Z) | inch | 8.66″ / 17.3″ |
| Rapid Travel(X/Z) | in/min | 1417″ / 1417″ |
| Slide Type | – | LM |
| No. of Tools | EA | 12 |
| Tool Size (ID / OD) | inch | 1″ / 1.5″ |
| Milling Tool Speed | r/min | – |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
