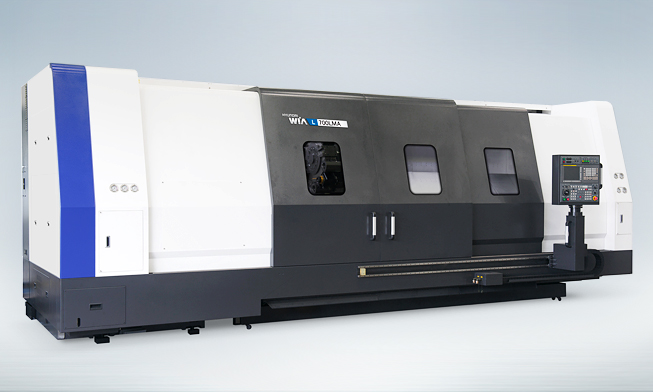

| Description | Unit | L700LMA |
|---|---|---|
| Max Turning Dia | in | 36.22″ |
| Max Turning Length | in | 128″ |
| Chuck Size | inch | 24″ |
| Driving Method | – | GEAR |
| Spindle RPM | r/min | 1,500 |
| Spindle Output | kW | 45/37 |
| Spindle Torque | N.m | 6,978/5,700 |
| Travel(X/Z) | in | 19.7/129 |
| Rapid Travel(X/Z) | in/min | 472 / 472 |
| Slide Type | – | BOX |
| No. of Tools | EA | 12 |
| Tool Size | in | 1.25 / 3.15 |
| Milling Tool Speed | r/min | 3,000 |
Specifications are subject to change without notice for quality improvement.
| Description | Unit | L700A | L700MA | L700LA | L700LMA |
|---|---|---|---|---|---|
| Max Turning Dia | in | 36.22″ | 36.22″ | 36.22″ | 36.22″ |
| Max Turning Length | in | 64.96″ | 64.96″ | 128″ | 128″ |
| Chuck Size | inch | 24″ | 24″ | 24″ | 24″ |
| Driving Method | – | GEAR | GEAR | GEAR | GEAR |
| Spindle RPM | r/min | 1,500 | 1,500 | 1,500 | 1,500 |
| Spindle Output | kW | 45/37 | 45/37 | 45/37 | 45/37 |
| Spindle Torque | N.m | 6,978/5,700 | 6,978/5,700 | 6,978/5,700 | 6,978/5,700 |
| Travel(X/Z) | in | 19.7/66 | 19.7/66 | 19.7/129 | 19.7/129 |
| Rapid Travel(X/Z) | in/min | 472 / 630 | 472 / 630 | 472 / 472 | 472 / 472 |
| Slide Type | – | BOX | BOX | BOX | BOX |
| No. of Tools | EA | 12 | 12 | 12 | 12 |
| Tool Size | in | 1.25 / 3.15 | 1.25 / 3.15 | 1.25 / 3.15 | 1.25 / 3.15 |
| Milling Tool Speed | r/min | – | 3,000 | – | 3,000 |
Specifications are subject to change without notice for quality improvement.
