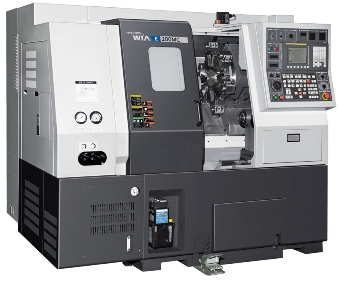

Hyundai Wia E200MC

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

In stock

DESCRIPTION UNIT E200MC
Max Turning Dia inch 11.4″
Max Turning Length inch 10″
Chuck Size inch 8″
Driving Method – Belt
Spindle RPM r/min 4,000
Spindle Output hp 14.75/20
Spindle Torque ft.lb 67.85 / 123
Travel(X/Z) inch 8.3′′/13′′
Rapid Travel(X/Z) in/min 1,417/1,417
Slide Type – LM
No. of Tools EA 12
Tool Size (OD/ID) inch 0.75″ / 1.25″
Milling Tool Speed r/min 4,500

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , , , Tag:

Features

  • 45° slanted one-piece high rigidity bed structure
  • Least heat distortion, the most stabilized unit structure
  • Able to extend, and high productive machine structure
  • Unbeatable rapid travel speed : 36m/min (E200A/MA/C/MC)
  • The most reliable high speed servo turret is adopted: 0.1sec/step
  • Application of a Box Guide to handle heavy cutting (E200PA/PC)
  • Compact design, able to install within a narrow space.
  • Ergonomic design allows convenient access to chuck and tool

Specifications (metric)

DESCRIPTION UNIT E200C E200MC E200PC
Max Turning Dia mm 350 290 350
Max Turning Length mm 270 255 270
Chuck Size inch 8″ 8″ 8″
Driving Method – Belt Belt Belt
Spindle RPM r/min 4,000 4,000 4,000
Spindle Output kW 11/15 11/15 11/15
Spindle Torque N.m 92/167 92/167 92/167
Travel(X/Z) mm 210/330 210/286 210/310
Rapid Travel(X/Z) m/min 36/36 36/36 24/24
Slide Type – LM LM BOX
No. of Tools EA 12 12 12
Tool Size mm 25/40 20/32 25/40
Milling Tool Speed r/min – 4,500 –

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Specifications

DESCRIPTION UNIT E200C E200MC E200PC
Max Turning Dia inch 13.8″ 11.4″ 13.8″
Max Turning Length inch 10.6″ 10″ 10.6″
Chuck Size inch 8″
Driving Method – Belt
Spindle RPM r/min 4,000
Spindle Output hp 14.75/20
Spindle Torque ft.lb 67.85 / 123
Travel(X/Z) inch 8.3′′/13′′ 8.3′′/12.2′′
Rapid Travel(X/Z) in/min 1,417/1,417 945/945
Slide Type – LM BOX
No. of Tools EA 12
Tool Size (OD/ID) inch 1″ / 1.5″ 0.75″ / 1.25″ 1″ / 1.5″
Milling Tool Speed r/min – 4,500 –

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
