Travel(X/Y/Z)
20.5" / 15.75" / 13"
20.5" / 15.75" / 13"
Specifications

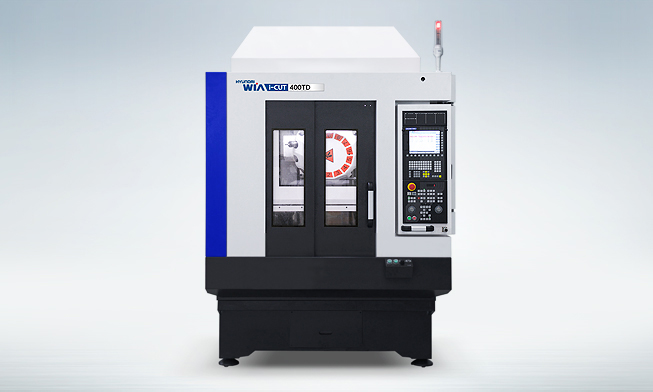

| Description | Unit | i-CUT400TD |
|---|---|---|

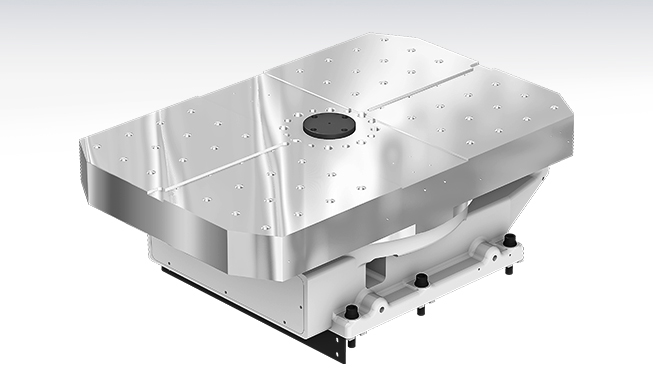

| Table Size | in | 2 – 25.6″×15.75″ |
| Max. Load Capacity | lbs | 2 – 550 |

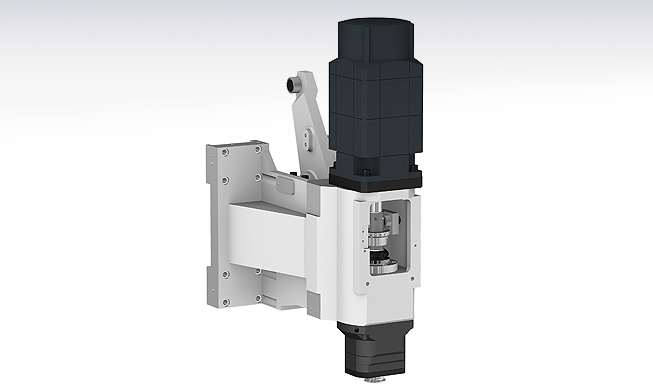

| Spindle Driving Method | – | Direct |

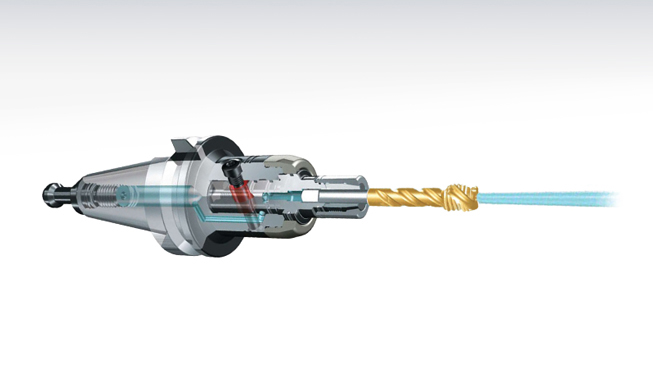

| Spindle Taper | – | BBT30 |
| Spindle RPM | r/min | 12,000 |
| Spindle Power | hp | 19 / 5.5 |
| Spindle Torque | ft.lbs | 33 / 15.5 |
| Travel(X/Y/Z) | in | 20.5″ / 15.75″ / 13″ |
| Rapid Feed Rate(X/Y/Z) | in/min | 56/56/56 |
| Slide Type | – | LM |

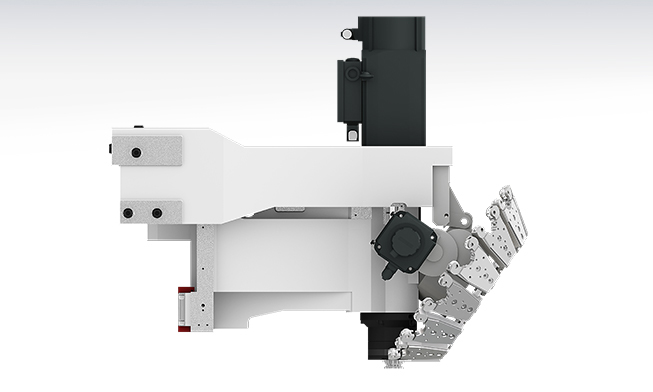

| No. of Tools | EA | 14 |
| Tool Change Time (Chip To Chip) |
sec | 1.74 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
