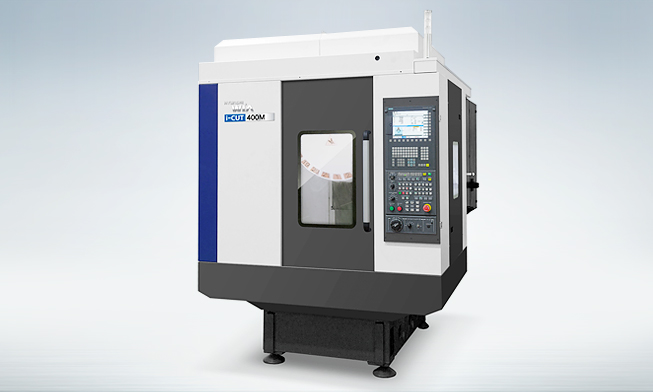

Hyunda Wia iCUT400M

Roll over image to zoom in

Status:In stock

Travel(X/Y/Z)
19.7 / 15.75" / 13"

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: 30 Taper, Hyundai Wia, Vertical Drill Tap Centers

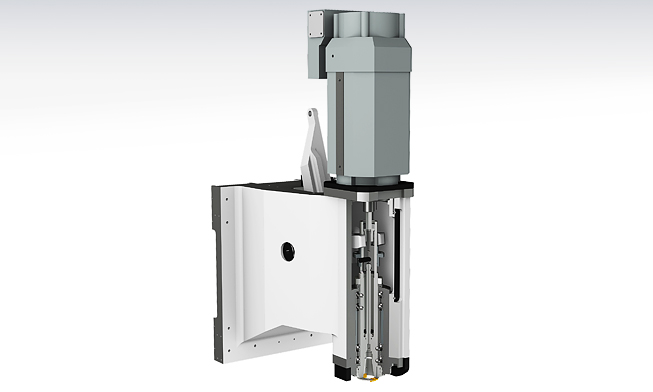

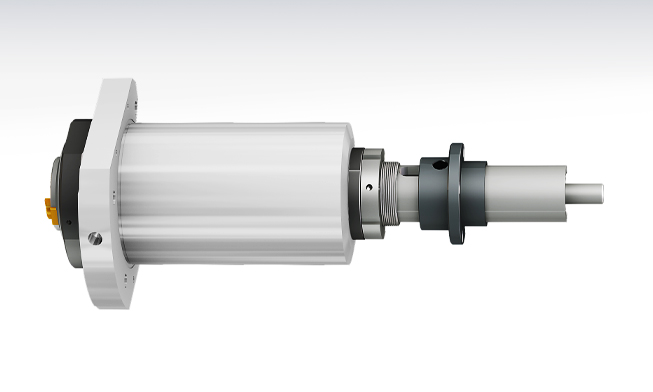

High Speed Direct Spindle i-CUT400T : 12,000 [15,000]rpm / i-CUT400M : 24,000rpm
Spindle Acceleration/Deceleration 0 → 24,000 RPM : 1.6 sec.
Rapid Feedrate in Each Axis 56m/min (Z axis Acceleration/Deceleration up to “1.27G”)
Rigid Tapping up to 6,000rpm

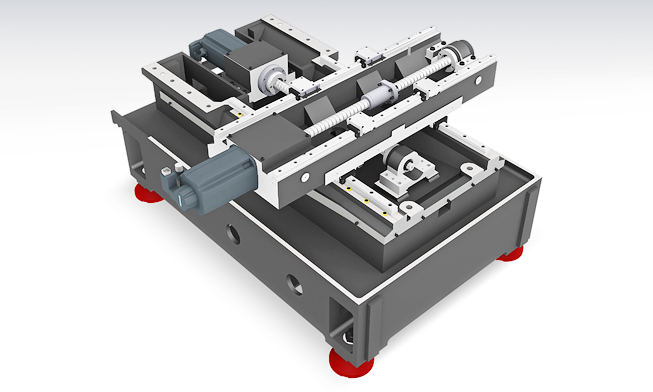

Weight reduction and added rigidity through FEM structural analysis

Description	Unit	i-CUT400T	i-CUT400M
Table Size	mm	650×400
Max. Load Capacity	kg	300
Spindle Driving Method	–	Direct
Spindle Taper	–	BBT30
Spindle RPM	r/min	12,000	24,000
Spindle Power	kW	14.1/4.1	22.6/3.5
Spindle Torque	N.m	45/21	24/3.7
Travel(X/Y/Z)	mm	500/400/330
Rapid Feed Rate(X/Y/Z)	m/min	56/56/56
Slide Type	–	LM

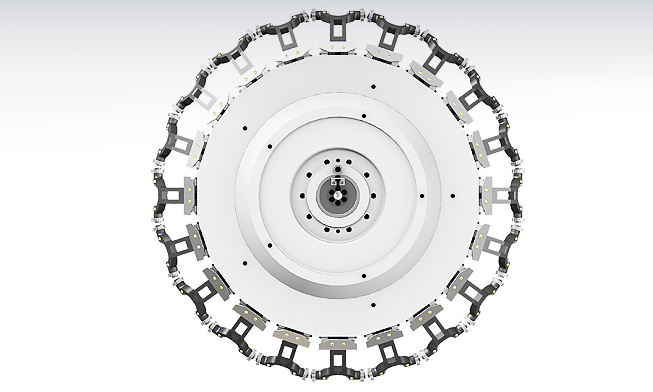

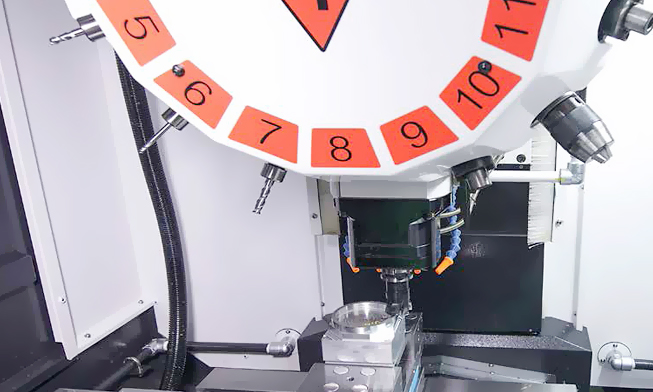

No. of Tools	EA	14
Tool Change Time (Chip To Chip)	sec	1.89

Description	Unit	i-CUT400T	i-CUT400M
Table Size	in	25.6″ / 15.75
Max. Load Capacity	lbs	661
Spindle Driving Method	–	Direct
Spindle Taper	–	BBT30
Spindle RPM	r/min	12,000	24,000
Spindle Power	hp	19/5.5	30/4.7
Spindle Torque	ft.lbs	33/15.5	17.7/2.7
Travel(X/Y/Z)	in	19.7 / 15.75″ / 13″
Rapid Feed Rate(X/Y/Z)	in/min	220/220/220
Slide Type	–	LM
No. of Tools	EA	14
Tool Change Time (Chip To Chip)	sec	1.89

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
