Toyoda FA1050 5 axis

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

In stock

FERROUS SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1″ (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 391 ft-lb (530 Nm)
Available Spindle CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available Spindle CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

NON-FERROUS SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1” (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 123 ft-lb (167 Nm)
Available Spindle CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

HIGH TEMP ALLOY SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1” (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 744 ft-lb (1,009 Nm)
Available Spindle CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

ACCURACY

Linear Position Accuracy ± .000078″ (±0.002 mm) full stroke
Linear Repeatability ± 0.000039″ (± 0.001 mm)
Rotary Positioning Accuracy (A and B axes) ± 5 arc seconds
Rotary Positioning Repeatability (A and B axes) ± 3 arc seconds

REEQUIREMENTS

Hydraulic Oil Mobil DTE Oil Light (16.6 gal) (63 liter)
Slideway Lubrication Daphine Multiway 32C 1.5 gal (5.5 liter)
Spindle Bearing Lubrication Mobil Velocite #3 (9.2 gal) (35 liter)
A, B Axis Lubrication Mobil Gear 600 XP 68 A axis (10.6 gal/40 liter) B axis (5.3 gal/20 liter)
Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included) 71 kVA
Categories: , ,

FA1050S-5Axis

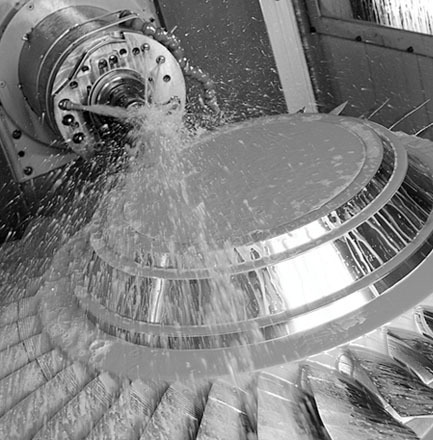

Five-axis machining is achieved with the FA1050S 5-Axis trunnion table. Its dual-drive mechanisms support heavy workpieces, while the high-resolution rotary encoders ensure precise positioning during simultaneous five-axis applications.

FA1050S 5Axis





FERROUS SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1″ (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 391 ft-lb (530 Nm)
Available Spindle CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available Spindle CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

NON-FERROUS SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1” (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 123 ft-lb (167 Nm)
Available Spindle CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

HIGH TEMP ALLOY SPECS

Pallet Size 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis) .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis) .0001 degree
X-Axis Travel 59.1″ (1,500 mm)
Y-Axis Travel 55.1” (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max Workpiece Swing 51.18” (1,300 mm)
Max Workpiece Height 32.48” (825 mm)
Maximum Work Load on the Pallet 4,400 lb (2,000 kg)
Spindle Output Torque 744 ft-lb (1,009 Nm)
Available Spindle CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis) 590 ipm (15 m/min)
Rapid Feedrate (Y axis) 944 ipm (24 m/min)
Rapid Feedrate (Z axis) 944 ipm (24 m/min)
Tool Storage Capacity 60 Standard (190, 240, 384 Optional)
Standard Floor Space 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height 161″ (4,100 mm)
Standard Net Weight 112,436 lbs (51,000 kg)

ACCURACY

Linear Position Accuracy ± .000078″ (±0.002 mm) full stroke
Linear Repeatability ± 0.000039″ (± 0.001 mm)
Rotary Positioning Accuracy (A and B axes) ± 5 arc seconds
Rotary Positioning Repeatability (A and B axes) ± 3 arc seconds

REEQUIREMENTS

Hydraulic Oil Mobil DTE Oil Light (16.6 gal) (63 liter)
Slideway Lubrication Daphine Multiway 32C 1.5 gal (5.5 liter)
Spindle Bearing Lubrication Mobil Velocite #3 (9.2 gal) (35 liter)
A, B Axis Lubrication Mobil Gear 600 XP 68 A axis (10.6 gal/40 liter) B axis (5.3 gal/20 liter)
Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included) 71 kVA
