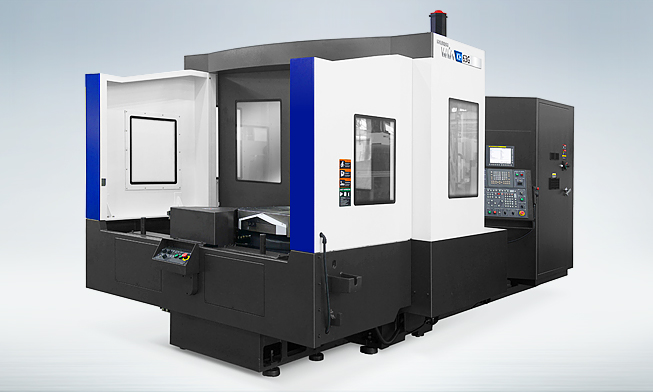

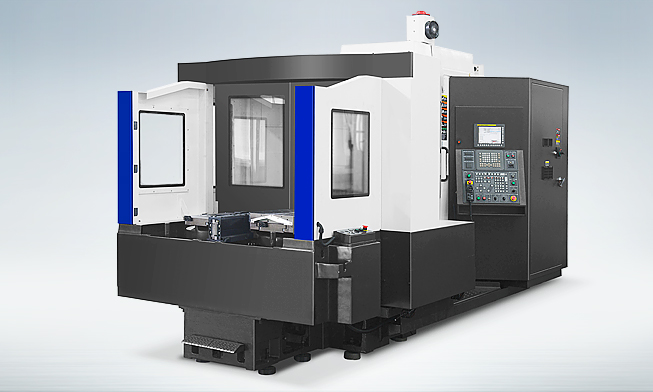

Hyundai Wia KH63G

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

In stock

Travel(X / Y / Z)
37.4″/32.5″/29.9″

Specifications

Description Unit KH63G
Pallets Size inch 24.8″×24.8″
Max. Load Capacity lbf 2 – 2,205
Spindle Driving Method – GEAR(2STEP)
Spindle Taper – BT50
Spindle RPM r/min 4,500
Spindle Power HP 29.5/24.8
Spindle Torque lbf.ft 789.9/664.5
Travel(X/Y/Z) inch 37.4″/32.5″/29.9″
Rapid Feed Rate(X/Y/Z) in/min 787/787/787
Slide Type – BOX
No. of Tools EA 40
Tool Change Time
(Chip To Chip)		 sec 11
No. of Pallets EA 2
APC Type – SHUTTLE
Pallet Change Time sec 26

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Features

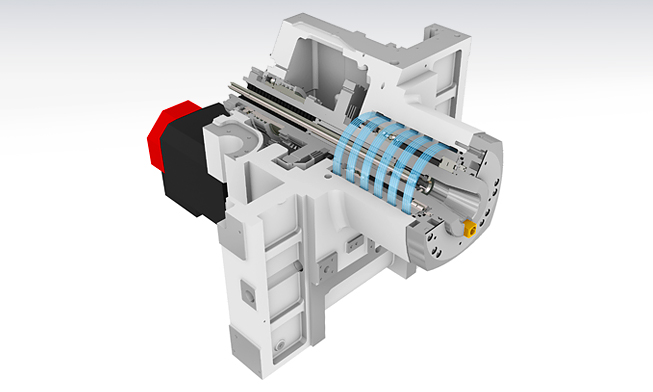

  • 2 Step Geared Main Spindle for Heavy Duty Cutting

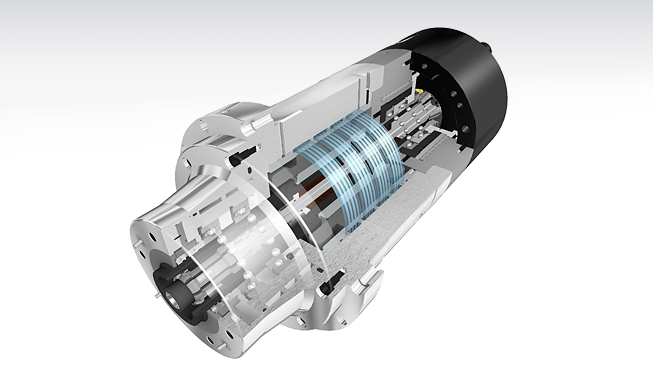

  • Spindle Oil Cooling System for high accuracy

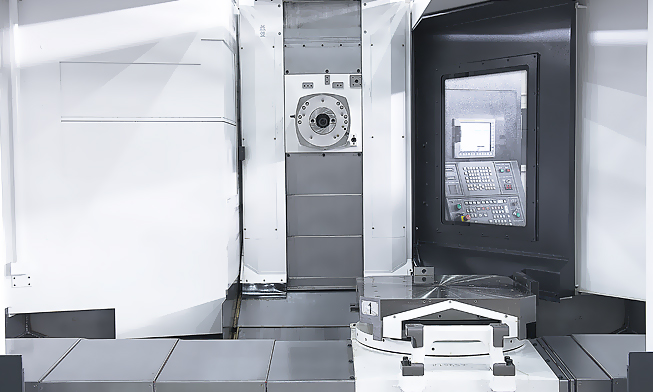

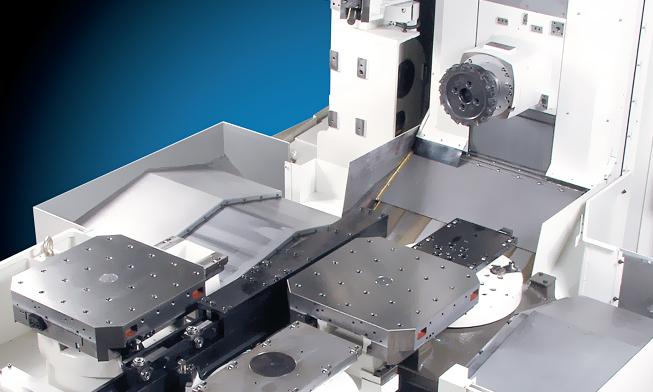

  • Shuttle Type
  • Box Guides on All Axis for Ultra-Rigidity
  • Air Semi-Rising Slide Way on Z-axis

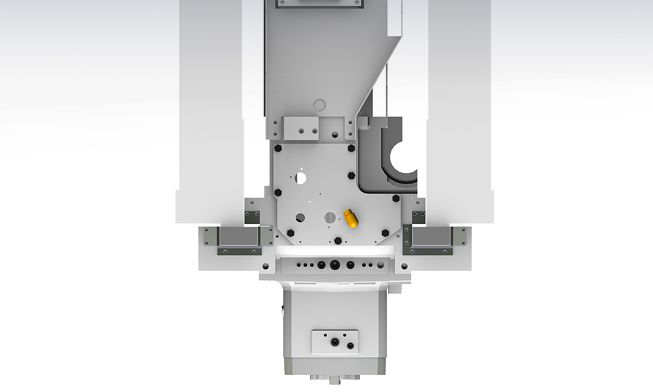

  • Y axis Box Guideways with 8 face contact for heavy machining capability
  • Specially Designed Column which Minimizes Thermal Displacement

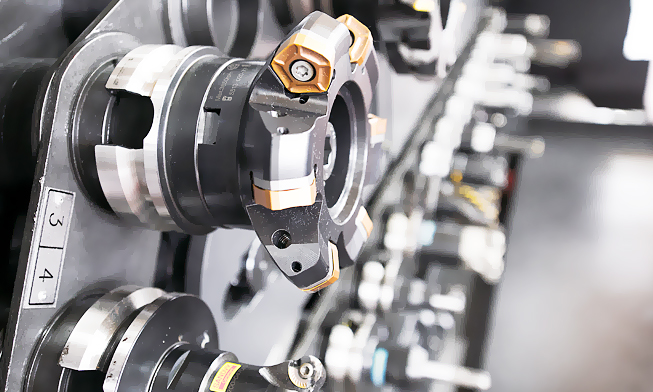

  • Tool Magazine capacity of up to 120 Tools (Optional)

Specifications

Description Unit KH50G KH63G
Pallets Size inch 19.7″×19.7″ 24.8″×24.8″
Max. Load Capacity lbf 2 – 1,764 2 – 2,205
Spindle Driving Method – GEAR(2STEP) GEAR(2STEP)
Spindle Taper – BT50 BT50
Spindle RPM r/min 4,500 4,500
Spindle Power HP 24.8/20 29.5/24.8
Spindle Torque lbf.ft 664.5/538.4 789.9/664.5
Travel(X/Y/Z) inch 29.9″/27.8″/25.6″ 37.4″/32.5″/29.9″
Rapid Feed Rate(X/Y/Z) in/min 787/787/787 787/787/787
Slide Type – BOX BOX
No. of Tools EA 40 40
Tool Change Time
(Chip To Chip)		 sec 11 11
No. of Pallets EA 2 2
APC Type – SHUTTLE SHUTTLE
Pallet Change Time sec 26 26

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
