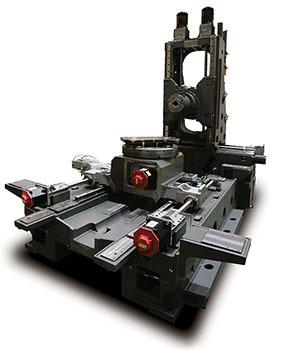

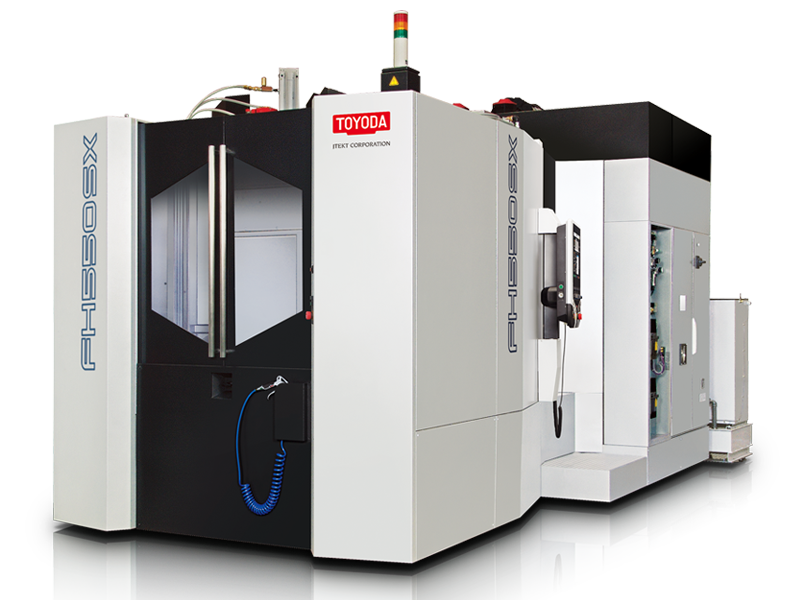

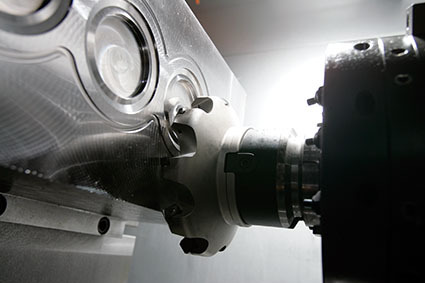

The FH550SX is a powerful, high-speed horizontal machining center featuring an 8,000 RPM high-torque spindle, with an option of 15,000 RPM spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.
FERROUS SPECS
Pallet Size
21.65″ x 21.65″ (550 mm x 550 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
29.52” (750 mm)
Y-Axis Travel
31.50” (800 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
33.46” (850 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,760 lb (800 kg)
Spindle Output Torque
391 ft-lb (530 Nm)
Available Spindle
CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (121 Optional)
Standard Floor Space
130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height
126″ (3,200 mm)
Standard Net Weight
35,494 lb (16,100 kg)
NON-FERROUS SPECS
Pallet Size
21.65″ x 21.65″ (550 mm x 550 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
29.52” (750 mm)
Y-Axis Travel
31.50” (800 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
33.46” (850 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,760 lb (800 kg)
Spindle Output Torque
123 ft-lb (167 Nm)
Available Spindle
CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (121 Optional)
Standard Floor Space
130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height
126″ (3,200 mm)
Standard Net Weight
35,494 lb (16,100 kg)
HIGH TEMP ALLOY SPECS
Pallet Size
21.65″ x 21.65″ (550 mm x 550 mm)
Table Index
Full NC table (360,000 positions)
X-Axis Travel
29.52” (750 mm)
Y-Axis Travel
31.50” (800 mm)
Z-Axis Travel
33.46” (850 mm)
Max Workpiece Swing
33.46” (850 mm)
Max Workpiece Height
39.37″ (1,000 mm)
Maximum Work Load on the Pallet
1,760 lb (800 kg)
Spindle Output Torque
744 ft-lb (1,009 Nm)
Available Spindle
CAT#50 50HP 8,000 RPM (High Torque 1009 Nm)
Rapid Feedrate (X axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Y axis)
2,362 ipm (60 m/min)
Rapid Feedrate (Z axis)
2,362 ipm (60 m/min)
Tool Storage Capacity
60 Standard (121 Optional)
Standard Floor Space
130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height
126″ (3,200 mm)
Standard Net Weight
35,494 lb (16,100 kg)
ACCURACY
Linear Position Accuracy
± .00012″ (.003 mm) full stroke
Linear Repeatability
± .00008″ (.002 mm)
Rotary Table Index Accuracy
± 7 arc seconds
Rotary Table Index Repeatability
± 3.5 arc seconds
REEQUIREMENTS
Hydraulic Oil
Mobil DTE Oil Light (14 gal)
Slideway Lubrication
Mobil Vactra #2 (.76 gal)
Spindle Bearing Lubrication
Mobil Velocite #6 (.76 gal)
Spindle Cooling
Mobil Velocite #3 (9.3 gal)
Table Lubrication
Mobil Gear 600 XP 150 (.79 gal)
Air Source
56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included)
