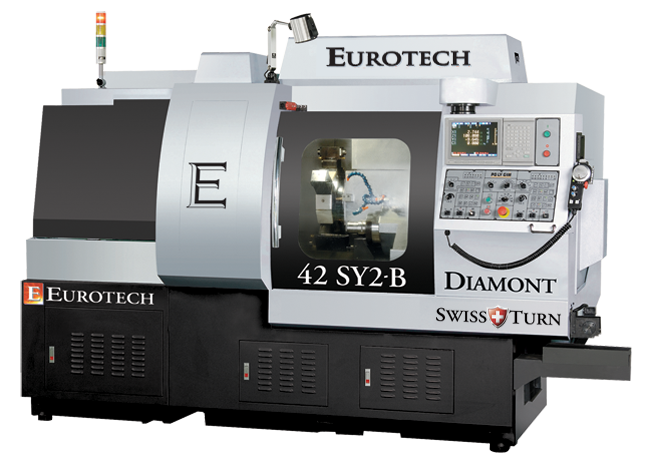

| Model | 42 SY2-B |
| Max Turning Diameter | 1.80” |
| Max. Machining Length per chucking | 11.02” |
| Max Drilling Diameter | 1.18″ |
| Max Tapping Diameter | M16 |
| OD Tooling (Slide 1) | |
| Number of Tools | 5 |
| Dimension | 0.79″ x 0.79″ x 0.79″ |
| Cross Working | Driven Tooling (Slide 1) |
| Number of Tools | 4 |
| Dimension | 0.63″ (ER25) |
| Speed | 6,000 RPM |
| Patented 12 Position | Mill-Turn Servo Turret |
| Number of Stations (driven) | 12 |
| Max. number of live tools | 24 |
| Number of potential cutting tools (using Y-axis) | 48 |
| Dimension | ER25, 0.98″ ID, 0.79″ OD |
| 360 Degrees Working Driven | Tooling (4 of 12 turret stations hold 2 tools ea) |
| Number of Potential Tools | 8 |
| Dimension | 0.63″ (ER25) |
| Speed | 6,000 RPM |
| Main Spindle | |
| Spindle Hole Diameter | 1.8″ |
| Speed | 6,000 RPM |
| Angular movement | Full C axis |
| Horsepower | 10.0 HP |
| Back Working Spindle | |
| Spindle Hole Diameter | 1.8″ |
| Speed | 6,000 RPM |
| Angular movement | Full C axis |
| Horsepower | 10.0 HP |
| Max Length for front eject | 9.8″ |
| Rapid Traverse | |
| X1, Y1, Z1, X2, Z2 | 1,181 IPM |
| Machine Dimensions | (incl. Chip Conveyor) |
| Length x Width x Height | 118 in x 71 in x 78 in |
| Weight | 14,730 lbs |
| OPTION – 11 Axis | 42 2Y-B XI |
| Backworking Tools # | 4 |
| Driven or stationary | ER25 |
