Investment Summary

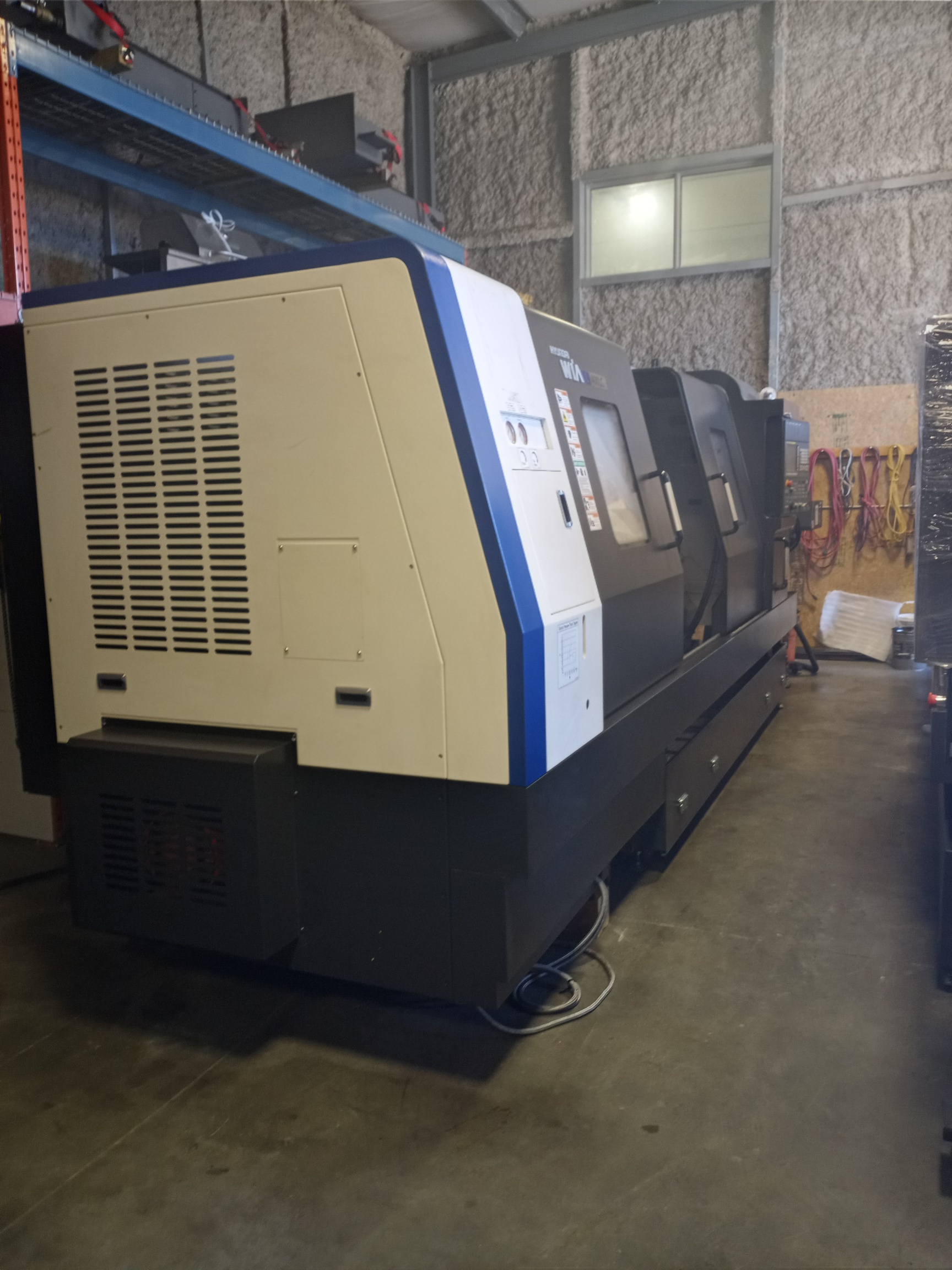

| L400LC Horizontal Lathe Used 2019 | ||

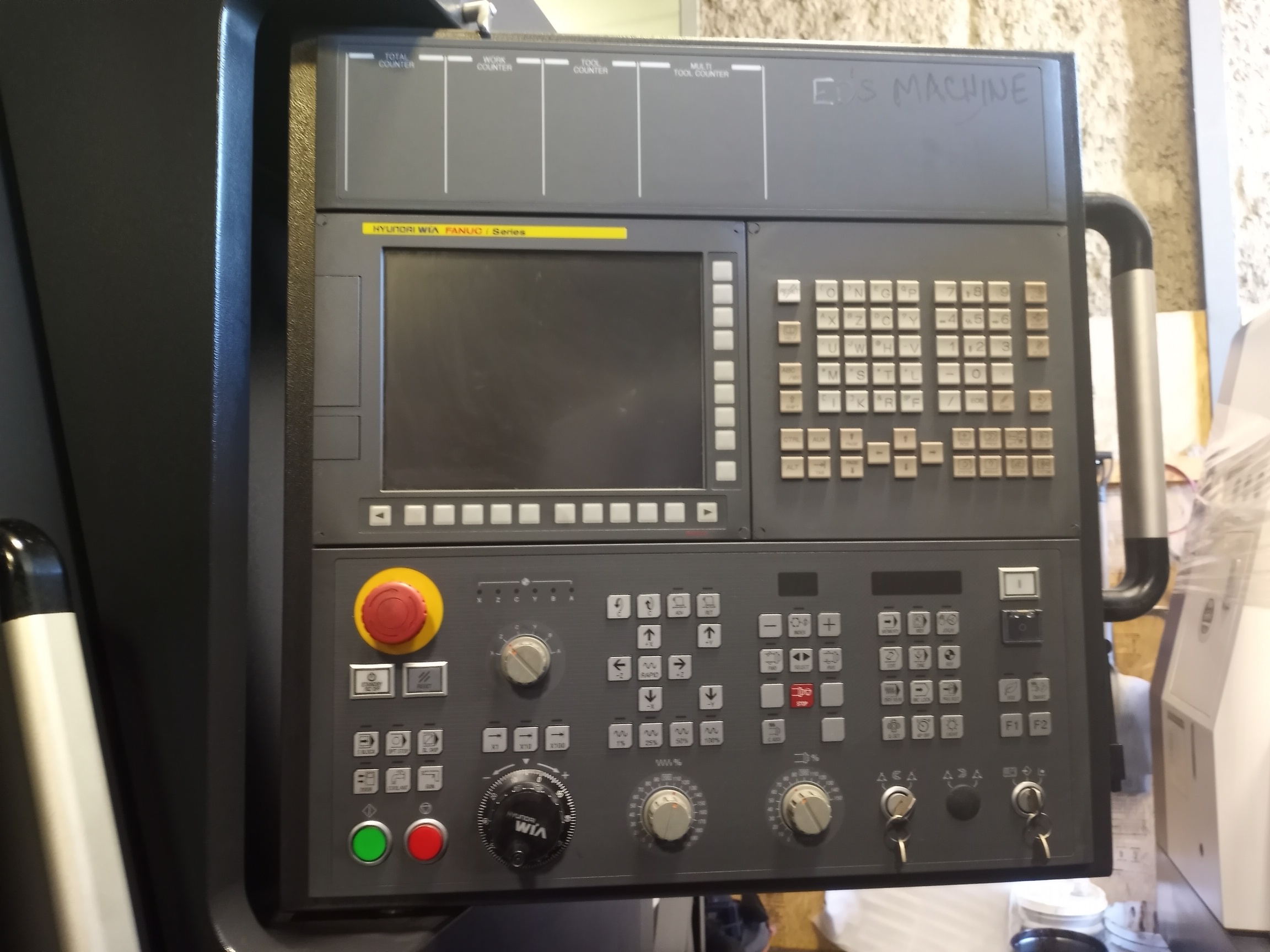

| Controller | Fanuc F0i-F ,10.4″ | Std |
| Swing | 28.5″ | Std |
| Maximum Cutting Diameter | 24.8″ | Std |
| Maximum Workpiece Length | 83.5″ | Std |
| Travel X Axis | 12.6″ | Std |
| Travel Z Axis | 86.6″ | Std |
| Guide Ways Boxed on X Linear For Z | Boxed | Std |
| Spindle | A2 – 11 | Std |
| Max Bar Work Diameter | 4.61″ | Std |
| Max RPM | 2,000 rpm | Std |
| Rapid Traverse X Axis | 787 ipm | Std |
| Rapid Traverse Z Axis | 944 ipm | Std |

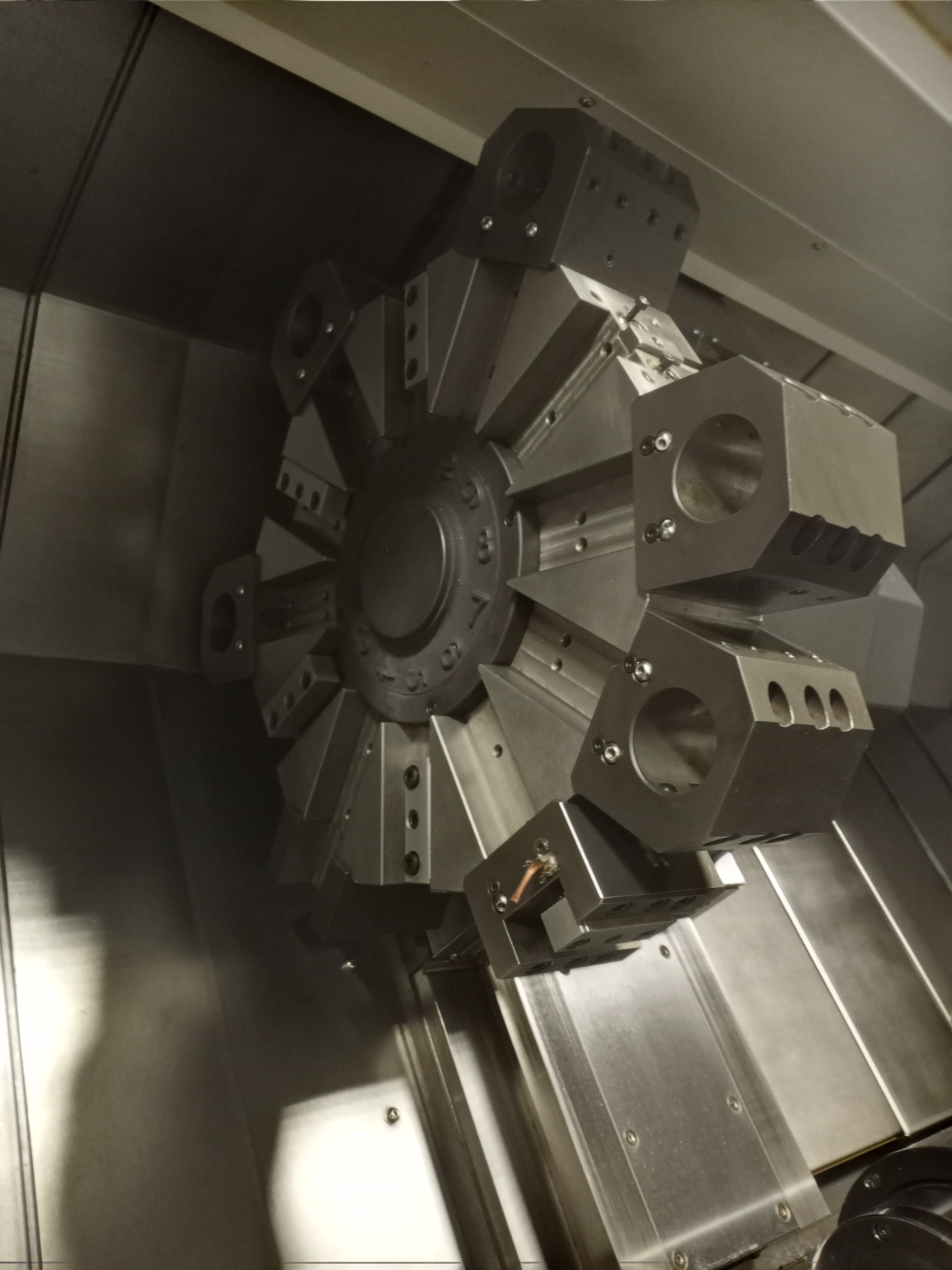

| Turret | 12 Tools | Std |
| Tool Size (Square Shank) | 1.25″ sq | Std |
| Tool Size (Round Shank) | 2″ | Std |
| Index Time – Tool to Next Tool | .2 sec | Std |

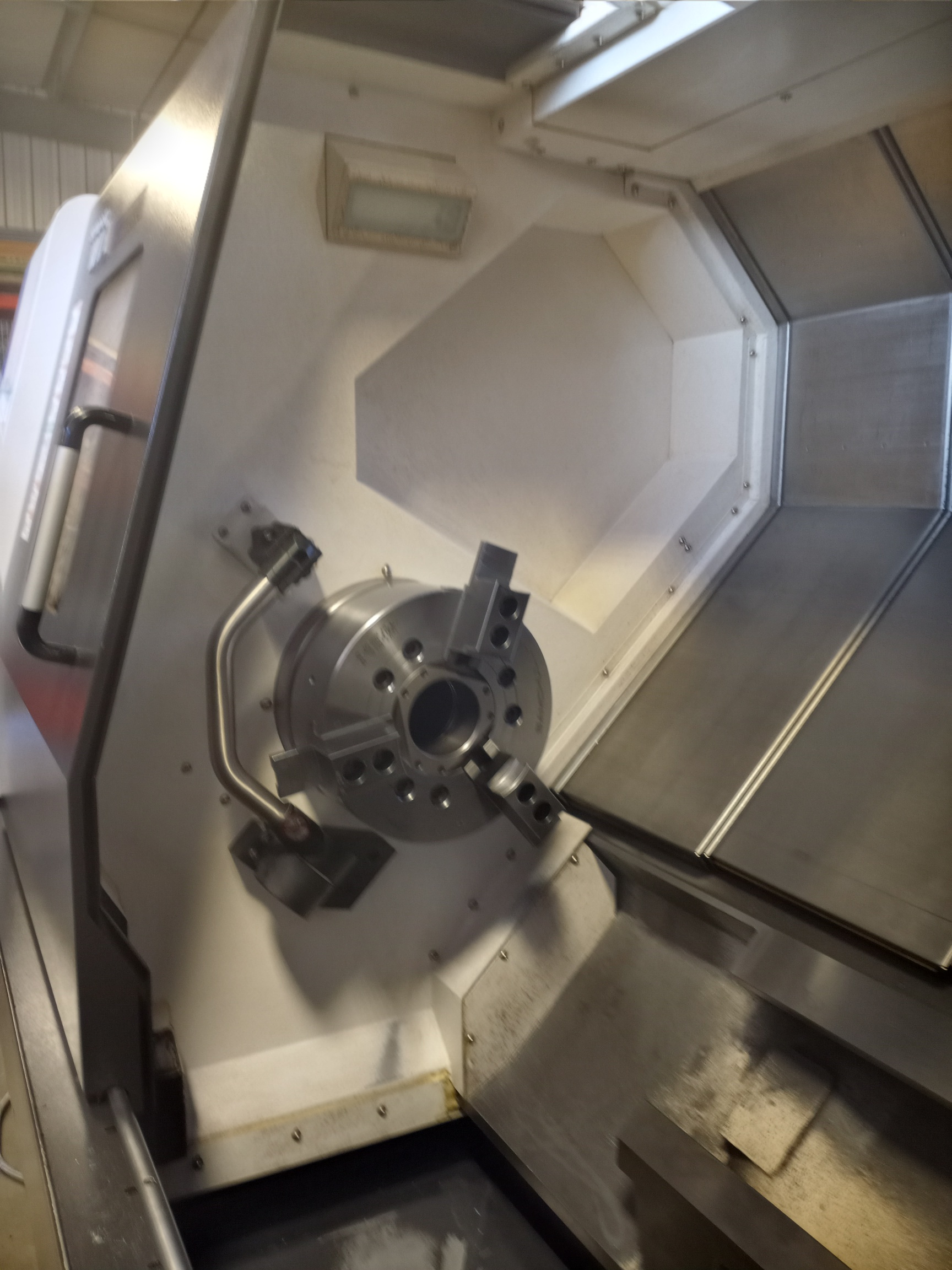

| Chuck | 15″ | Std |

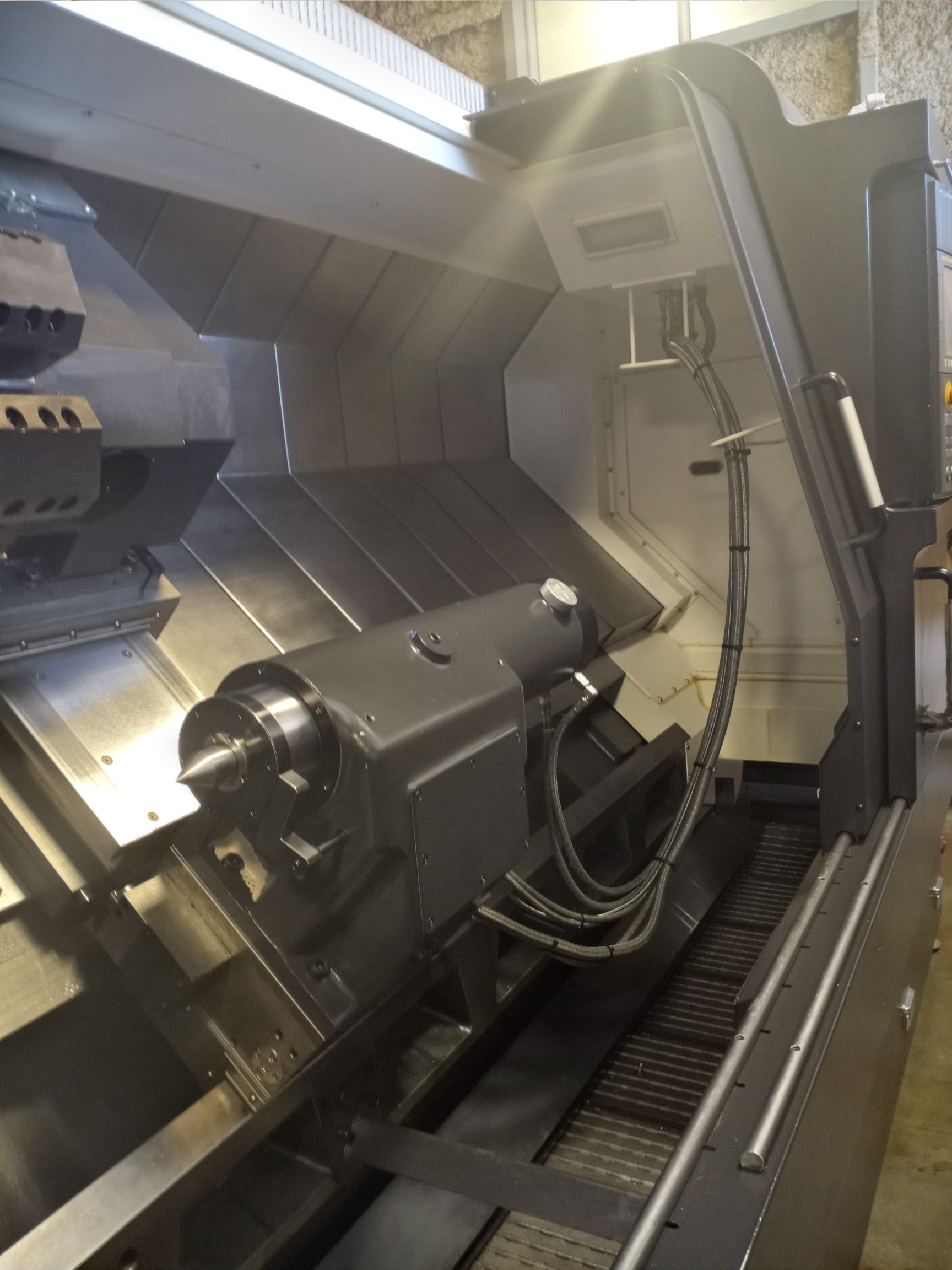

| Tailstock Quill Diameter | 5.9″ | Std |
| Tailstock Quill Travel (Programmable) | 5.9″ | Std |
| Tailstock Body Travel (Programmable) | 82.7″ | Std |
| Tailstock Quill Internal Taper (Built-In Type) | MT #5 | Std |
| Gear Box | 2 | Std |
| Horsepower | 50 Hp | Std |
| Torque | 2,242 Ft-lbs | Std |
| Weight | 24,250 lbs | Std |
| Bed | 45 deg | Std |
| Standard Tooling Package | Yes | Std |
| Q – Setter | Touch | Std |

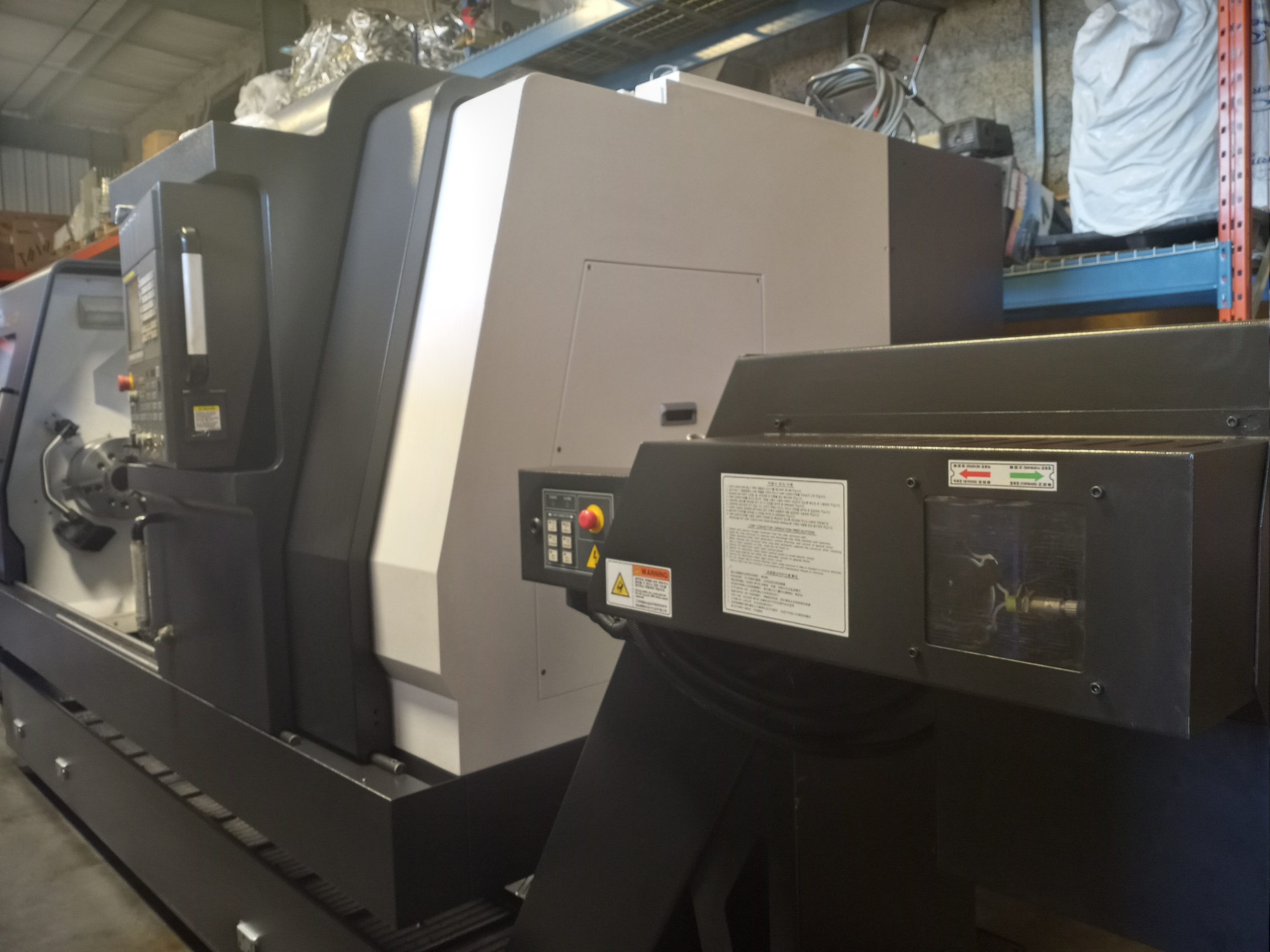

| Chip Conveyor | Hinge Right | Inc |
| Options Included with Machine | ||
| Manual Guide I w/ Thread Pick up Cycle | Control Option | Inc |
|
Schmidt Tool RIP-216 Pass Thru Flip Top Manual Steady Rest
|
Inc
|
|
|
mounted to L400LC Tailstock box ways Range 1″ – 16″ capacity
|
||
| Total | $ – | |
| F.O.B- EDMONTON, AB | Freight | |
| Total USA Funds | $ – | |
