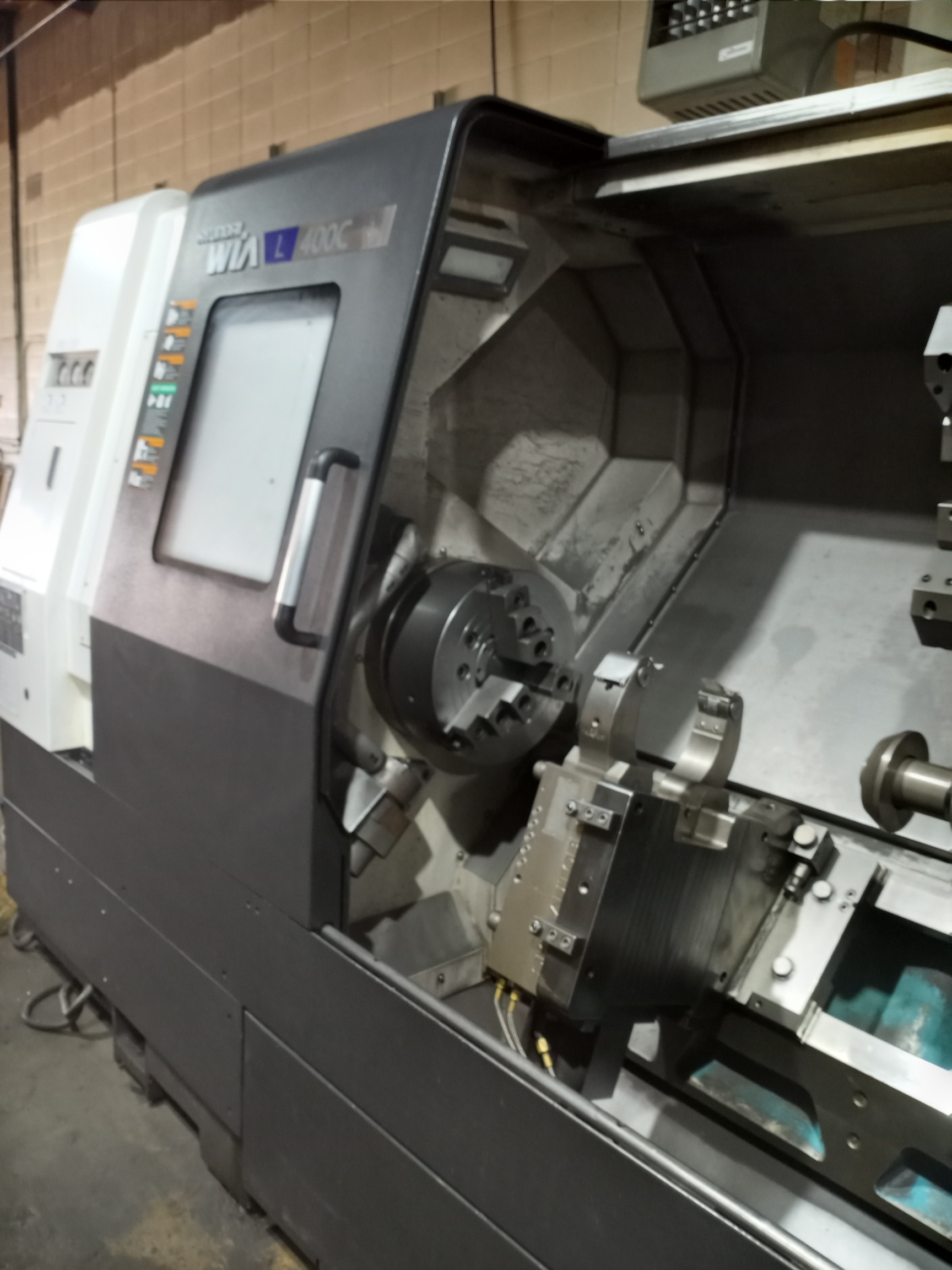

| Used L 400C Horizontal Lathe Year 2011 | ||
| CNC controller | Fanuc 21i TC | Std |
| Swing | 30.7″ | Std |
| Maximum Cutting Diameter | 24.8″ | Std |
| Maximum Workpiece Length | 46.1″ | Std |
| Travel X axis | 12.8″ | Std |
| Travel Z axis | 47.4″ | Std |
| Guide Ways Boxed on X Linear For Z | Boxed | Std |
| Spindle | A2 – 11 | Std |
| Max Bar Work Diameter | 4.61″ | Std |
| Max RPM | 2,000 | Std |
| Rapid Traverse X axis | 787 ipm | Std |
| Rapid Traverse Z axis | 944 ipm | Std |
| Turret | 10 Tools | Std |
| Tool Size (Square Shank) | 1.25″x1.25″ | Std |
| Tool Size (Round shank) | 2″ | Std |
| Index Time (1 station/1 full rev) | .2 sec | Std |
| Chuck | 15″ | Std |
| Tail Stock Quill Diameter | 3.94″ | Std |
| Tail Stock Quill Travel (Programmable) | 5.1″ | Std |
| Tail Stock Body Travel | 43.3″ | Std |
| Tail Stock Quill Internal Taper | MT #4 – Built In Type | Std |
| Gear Box | 2 | Std |
| Horsepower | 35 HP | Std |
| Torque | 1345 Ft lbs | Std |
| Weight | 18,739 lbs | Std |
| Bed | 45 deg | Std |
| Standard Tooling Package | Std | |
| Quick Setter | Touch | Std |
| Optional Equipment | ||
| Chip Conveyor | Hinge Right | |
| Total | $ – | |
| Accepted By: Purchase Order No: | ||
| Steady Rest Option | ||
| Used SLU 4 Programmable Steady Rest ( 1.18 to 9.65″ ) | ||
| Manual clamp base | INC | |
| Auto Lube | INC | |
