CNC controller Fanuc 21iT Swing 29.5″ Maximum Cutting Diameter 19.7″ Maximum Turning Length 26.8″ Travel X axis 13.2″ Travel Z axis 29.5″ Guide Ways Boxed on X Linear For Z Boxed Spindle Nose A2 8 Max Bar Work Diameter left 3.5″ – right 2.5″ Spindle Speed 3000 RPM Rapid Traverse X axis 945 ipm Rapid Traverse Z axis 945 ipm Turret 12 Staion Live Tool Max. Speed – Live Tool Power 7.5 HP Tool Size (Square Shank) 1″ sq Tool Size (Round shank) 1.5″ Index Time (1 station/1 full rev) .2 sec Chuck ( Samwoo Kitagawa ) 12″Main 8″ Tail Stock Quill Diameter – Tail Stock Quill Travel (Programmable) – Tail Stock Body Travel – Tail Stock Quill Internal Taper – Gear Box – Horsepower(30min./Peak) 50/60 HP Torque 665 ft-lbs (L) 103 ft-lbs (R) Weight 13,900 lbs Bed 45 deg $69,000.00$69,000.00Hyundai SKT460 Horizontal Lathe 2007 – Sn#SKT4600227 Controller Fanuc 32i-A Std Power ON 24 350 hours Operating 9049 hours Cutting 7705 hours Swing 34.4″ Std Maximum Cutting Diameter 26″ Std Maximum Workpiece Length 62″ Std Travel X Axis 14.6″ Std Travel Z Axis 62″ Std Guide ways Boxed Std Spindle A2 – 11 Std Max Bar Work Diameter 4.61″ Std Max RPM 2,000 rpm Std Rapid Traverse X Axis 591 ipm Std Rapid Traverse Z Axis 787 ipm Std Turret 12 tool Std Tool Size (Square Shank) 1.25″ sq Std Tool Size (Round Shank) 2.5″ Std Index Time – Tool to Next Tool .7 sec Std Chuck 18″ Std Tailstock Quill & Body Travel Programmable Std Tailstock Quill Diameter 5.9″ Std Tailstock Quill Travel 6.7″ Std Tailstock Body Travel 50.4″ Std Tailstock Quill Internal Taper MT #6 Std Horsepower 50 Hp Std Torque 2,044 ft lbs Std Work Light Std Weight 26,455 lbs Std Bed 45 deg Std Q-Setter – Marposs Touch Std Automatic Tool Setter Std Coolant System Std Standard Tooling Package Std Optional Equipment Chip Conveyor Hinge Right With Coolant Cover (31684700710) Included $70,000.00$70,000.00Hyundai Kia VX 950M SN G3690-0080 MFG date 2008 Controller Fanuc 18IMB Travel X,Y,Z 96.5″x37.4″x33..5″ Table 106″x37″ Max table weight 9,921 lbs Spindle nose to table 7.1″ to 41.3″ Spindle taper CAT 50 Spindle speed 8,000 rpm Horsepower 30 HP Gear box 2 gear Ranges Torque at 30 minutes / continuous 812 / 579ft-lbs Ways Boxed Rapid traverse Z axis 787 Imp Rapid traverse X/Y axis 630 Imp Tool magazine (Dual arm) 30 tool Max tool diameter (With out adjacent tool) 4.9″ ( 9.4 ) Max tool weight 44.1 lbs Tool to Tool time 3.5 sec Weight 61,809 lbs Coolant wash down system Rear chip auger Work light Optional equipment Thru Spindle Coolant 430 PSI 2 Spiral Conveyors Inside the machine Chip conveyor Lift up (included) MODULE, (FROM 32MB, SRAM 3MB) included UPGRADE PART PROG STORAGE 2560 M included Stock Lamarche Warehouse Edmonton Lamarche will load (rig) and prep machine for shipping Purchaser responsible for Transport, rigging, and placement of machine. Installation, Training, Commissioning Lamarche Service (Pending on Location) $80,000.00$80,000.00CNC controller Fanuc 0i-TC Swing 29.5″ Maximum Cutting Diameter 19.7″ Maximum Turning Length 52″ Travel X axis 11.4″ Travel Z axis 53.1″ Guide Ways Boxed on X Linear For Z Boxed Spindle Nose A2 8 Max Bar Work Diameter 3″ Spindle Speed 3,600 rpm Rapid Traverse X axis 787 ipm Rapid Traverse Z axis 945 ipm Turret 12 Tools Live Tool Max. Speed – Live Tool Power 7.5 HP Tool Size (Square Shank) 1″ sq Tool Size (Round shank) 2″ Index Time (1 station/1 full rev) .3 sec Chuck ( Samwoo Kitagawa ) 12″Main 12″ Tail Stock Quill Diameter 3.9″ Tail Stock Quill Travel Manual 4.7″ Tail Stock Body Travel 53.1″ Tail Stock Quill Internal Taper MT# 5 Gear Box 2 Gear Ranges Horsepower(30min./Peak) 30 HP Torque 556.9 Ft-lbs Weight 16,534 lbs Bed 45 deg $50,000.00$50,000.00Specification
CNC controller Oi-TD w/ 8.4″ Color LCD Swing 38.58″ Maximum Cutting Diameter 34.64″ Maximum Turning Length 32.67″ Travel X axis 19.68″ Travel Z axis 38.58″ Guide Ways Boxed on X Linear For Z Boxed Spindle Nose A2 – 11 Max Bar Work Diameter 4.56″ Spindle Speed 2,000 RPM Rapid Traverse X axis 788 ipm Rapid Traverse Z axis 945 ipm Turret 12 Staion W/ Live Tooling Live Tool Max. Speed 3,000 RPM Live Tool Power 10 HP (cont.) Tool Size (Square Shank) 1.25″x1.25″ Tool Size (Round shank) 2.25″ Index Time (1 station/1 full rev) .3 sec Chuck 18″ 3-Jaw Hyd. Tail Stock Quill Diameter 4.33″ Tail Stock Quill Travel (Programmable) 5.9″ Tail Stock Body Travel 31.49″ Tail Stock Quill Internal Taper MT #6 Gear Box 2 Speed Horsepower(30min./Peak) 50/60 HP Torque 2,048 Ft/lbs (30 min.) Weight 26,450 lbs Bed 45 deg $99,000.00$99,000.00JUST ARRIVED- HYUNDAI WIA L300LC TURNING CENTER

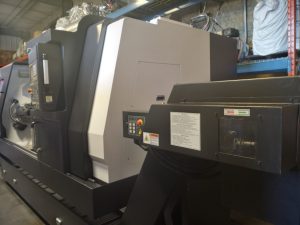

Built 2015 installed 2016 Hyundai WIA L300LC Manual Guide I Controller Fanuc 0i-TD 10.4″ Swing 29.5″ Maximum Cutting Diameter 22″ Maximum Workpiece Length 52″ Travel X Axis 14″ Travel Z Axis 53.1″ Ways Boxed Spindle A2 – 8 Max Bar Work Diameter 3.54″ Spindle Bore 4.02″ Max RPM 3,000 rpm Rapid Traverse X Axis 787 ipm Rapid Traverse Z Axis 945 ipm Turret 12 Tools Tool Size (Square Shank) 1″ sq Tool Size (Round Shank) 2″ Index Time – Tool to Next Tool .3 sec Chuck ( Samwoo Kitagawa ) 12″ Horsepower 35 HP Geared Head 2 Step Geared Torque 810 Ft-lbs Work Light Yes Weight 16,755 lbs Bed 45 deg Coolant System 43 psi Tool Setter Yes Tailstock Quill Diameter 3.9″ Tailstock Quill Travel (Programmable) 4.7″ Tailstock Body Travel using Turret auto clap 53.1″ Tailstock Quill Internal Taper MT #5 Optional Equipment Chip Conveyor C/C(Right-Side Hinged)
Specifications

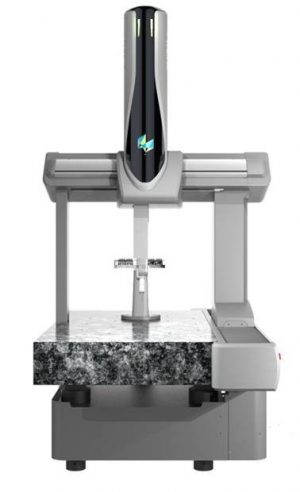

Measuring Range (in mm) X Y Z 2000 – 2500 3300 – 5000 1000 – 1500 – 1800 Accuracy: MPEE= from 3.5 + 3.5 L/1000
Specifications

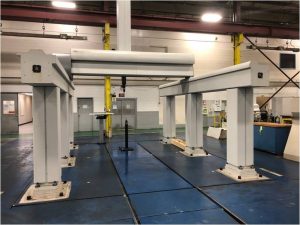

Measuring Range (in mm) X Y Z 2500 – 3000 – 3500 – 4000 3300 – 5100 – 6300 – 8000 2000 – 2500 – 3000 Accuracy (µm):MPEE= from 3.8 + 3.5 L/1000
Specifications
Measuring Range (in mm)
X Y Z 4000 – 5000 – 6000 5100 – 6300 – 8000 – 10000 2500 – 3000 – 3500 – 4000 Accuracy: MPEE = from 5.5 + 6 L/1000 < 30
Specifications
Model B1250L Maximum bar capacity 3.74” Maximum machining diameter 17.8” Maximum machining length 46” Maximum swing over diameter (bench) 26.7” MAIN SPINDLE Spindle Bore 3.74” Spindle speed range 3,000 RPM Geared headstock 1:1 and 4:1 Spindle motor 51 HP Motor type Wide range Spindle nose ASA A2-8 TURRET Turret indexing time 1 station 0.3 sec/pos Turret indexing type Bi-directional Number of stations 16 TAILSTOCK Positioning travel 51.2” Quill Stroke 6” Quill diameter 4.5” Cylinder area sq. in 17.23 Max Thrust 2,645.5lbs Flange for live center MT5 REVOLVING TOOL ATTACHMENT TURRET Number of positions 16 Drive motor-max. rating (Fanuc) 23 HP Speed range 6,000 RPM Engagement time immediate C AXIS CONTROL WITH SPINDLE POSITIONING Spindles Main Spindle positioning Full “C” Minimum command increment 0.001 degree Positioning system Spindle motor Degree of movement Programmable Rapid speed rate 100 RPM GENERAL INFORMATION Voltage required 400 volt AC, 3-phase Air required 80 psi @ 4 CFM MACHINING DIMENSIONS Width 86.2” Height 87.5” Length with chip conveyor 218” Machine weight with chip conveyor 18,519 lbs. ACCURACY Z axis repeatability accuracy +/-.00004” X axis positioning accuracy +/-.00006” C axis positioning accuracy +/-.00005° C axis repeatability +/-.00001°
