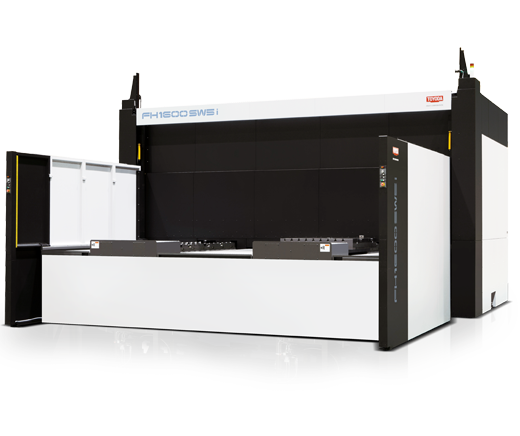

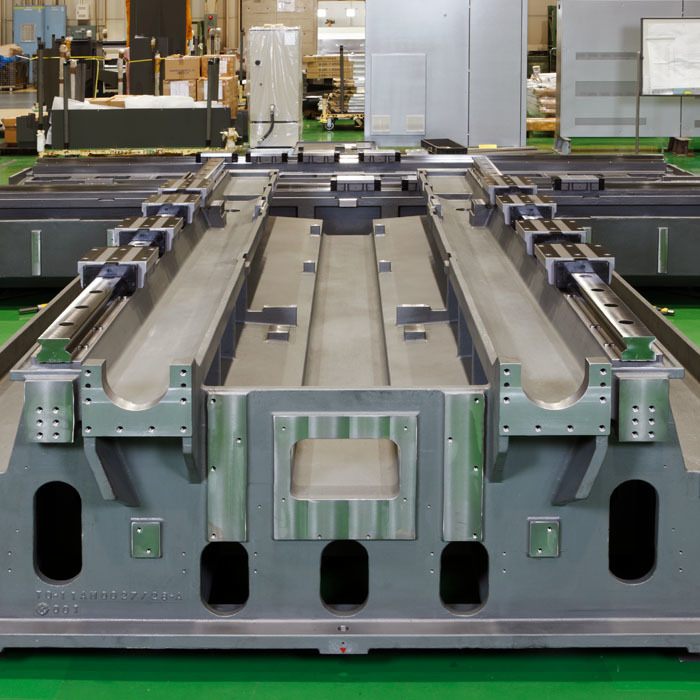

FH1600SW-i
Toyoda’s FH1600SW-i horizontal machining center features the largest work envelope in its class with a maximum swing of ⌀126″ (⌀3,200 mm) and a workpiece height of 83″ (2,100 mm). Engineered for heavy cutting, the FH1600SW-i’s 5.9″ (150 mm) diameter quill spindle allows for powerful cutting with high material removal rates.
FH1600SWI
FERROUS SPECS
| Pallet Size |
63″ x 49.2″ (1,600 mm x 1,250 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
118.1″ (3,000 mm) |
| Y-Axis Travel |
74.8″ (1,900 mm) |
| Z-Axis Travel |
82.6″ (2,100 mm) |
| W-Axis Travel |
29.5 (750 mm) |
| Max Workpiece Swing |
126” (3,200 mm) |
| Max Workpiece Height |
82.6” (2,100 mm) |
| Maximum Work Load on the Pallet |
17,600 lbs (8,000 kg) |
| Spindle Output Torque |
1,560 ft-lb (2,115 Nm) |
| Available Spindle |
CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar |
| Rapid Feedrate (X axis) |
1,378 ipm (35 m/min) |
| Rapid Feedrate (Y axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (Z axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (W-axis) |
787 ipm (20 m/min) |
| Tool Storage Capacity |
One Hundred Twenty (120) |
| Standard Floor Space |
398″ x 575″ (10,100 mm x 14,600 mm) |
| Machine Height |
178″ (4,520 mm) |
| Standard Net Weight |
165,350 lb (75,000 kg) |
NON-FERROUS SPECS
| Pallet Size |
63″ x 49.2″ (1,600 mm x 1,250 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
118.1″ (3,000 mm) |
| Y-Axis Travel |
74.8″ (1,900 mm) |
| Z-Axis Travel |
82.6″ (2,100 mm) |
| W-Axis Travel |
29.5 (750 mm) |
| Max Workpiece Swing |
126” (3,200 mm) |
| Max Workpiece Height |
82.6” (2,100 mm)mm) |
| Maximum Work Load on the Pallet |
17,600 lbs (8,000 kg) |
| Spindle Output Torque |
1,560 ft-lb (2,115 Nm) |
| Available Spindle |
CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar |
| Rapid Feedrate (X axis) |
1,378 ipm (35 m/min) |
| Rapid Feedrate (Y axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (Z axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (W-axis) |
787 ipm (20 m/min) |
| Tool Storage Capacity |
One Hundred Twenty (120) |
| Standard Floor Space |
398″ x 575″ (10,100 mm x 14,600 mm) |
| Machine Height |
178″ (4,520 mm) |
| Standard Net Weight |
165,350 lb (75,000 kg) |
HIGH TEMP ALLOY SPECS
| Pallet Size |
63″ x 49.2″ (1,600 mm x 1,250 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-Axis Travel |
118.1″ (3,000 mm) |
| Y-Axis Travel |
74.8″ (1,900 mm) |
| Z-Axis Travel |
82.6″ (2,100 mm) |
| W-Axis Travel |
29.5 (750 mm) |
| Max Workpiece Swing |
126” (3,200 mm) |
| Max Workpiece Height |
82.6” (2,100 mm) |
| Maximum Work Load on the Pallet |
17,600 lbs (8,000 kg) |
| Spindle Output Torque |
1,560 ft-lb (2,115 Nm) |
| Available Spindle |
CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar |
| Rapid Feedrate (X axis) |
1,378 ipm (35 m/min) |
| Rapid Feedrate (Y axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (Z axis) |
1,575 ipm (40 m/min) |
| Rapid Feedrate (W-axis) |
787 ipm (20 m/min) |
| Tool Storage Capacity |
One Hundred Twenty (120) |
| Standard Floor Space |
398″ x 575″ (10,100 mm x 14,600 mm) |
| Machine Height |
178″ (4,520 mm) |
| Standard Net Weight |
165,350 lb (75,000 kg) |
ACCURACY
| Linear Position Accuracy (X, Y, and Z axes) |
± .00012″ (±0.003 mm) full stroke |
|
| Linear Repeatability (X, Y, and Z axes) |
± 0.00007″ (± 0.0015 mm) |
|
| Rotary Table Index Accuracy |
± 7 arc seconds |
|
| Rotary Table Index Repeatability |
± 3.5 arc seconds |
|
REEQUIREMENTS
| Hydraulic Oil |
Mobil DTE Oil Light (16.6 gal / 63 liter) |
|
| Slideway Lubrication |
Mobil Vactra #2 (1.5 gal / 5.5 liter) |
|
| Spindle Bearing Lubrication |
Mobil Velocite #6 (.76 gal /2.9 liter) |
|
| Spindle Cooling |
Mobil Velocite #3 (5.3 gal / 20 liter) |
|
| terTable Lubrication |
Mobil Gear 600 XP 150 (1.1 gal / 4 liter) |
|
| Air Source |
56 ~ 70 psi (4 ~ 5 kgf / cm²) |
|
| Power Capacity (Machine Wired: 208V – Transformer Not Included) |
79 kVA |
|
