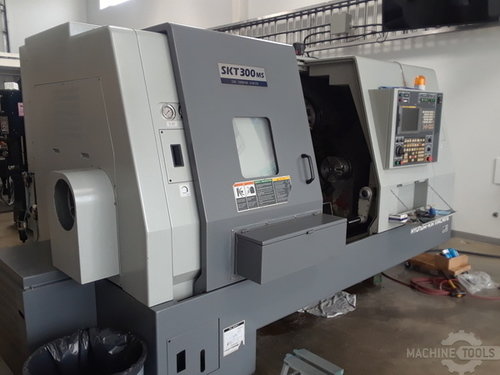

2006 HYUNDAI KIA SKT-300-MS

$69,000.00

In stock

CNC controllerFanuc 21iT
Swing29.5″
Maximum Cutting Diameter19.7″
Maximum Turning Length26.8″
Travel X axis13.2″
Travel Z axis29.5″
Guide Ways Boxed on X Linear For ZBoxed
Spindle NoseA2 8
Max Bar Work Diameterleft 3.5″ – right 2.5″
Spindle Speed3000 RPM
Rapid Traverse X axis945 ipm
Rapid Traverse Z axis945 ipm
Turret12 Staion
Live Tool Max. Speed
Live Tool Power7.5 HP
Tool Size (Square Shank)1″ sq
Tool Size (Round shank)1.5″
Index Time (1 station/1 full rev).2 sec
Chuck( Samwoo Kitagawa ) 12″Main 8″
Tail Stock Quill Diameter
Tail Stock Quill Travel (Programmable)
Tail Stock Body Travel
Tail Stock Quill Internal Taper
Gear Box
Horsepower(30min./Peak)50/60 HP
Torque665 ft-lbs (L) 103 ft-lbs (R)
Weight13,900 lbs
Bed45 deg



USED SKT300MS


MFG Date Sept 2006 / Sn. SKT300ms 0003 Very well maintained machine, Cleaned, Refurbished with new parts, Inspected and stamp of approval Reduced Price or OBO!
We are the original Dealer / supplier of this machine! CNC controller Fanuc 21iT Swing 29.5″ Maximum cutting diameter 19.7″ Maximum workpiece length 26.8″ Travel X axis 13.2″ Travel Z axis 29.5″ B Axis Travel 27.6″ ways Boxed Spindle A2 8 Second A2 6 Max bar work diameter Left 3.5″ Max bar work diameter right 2.5″ Max RPM L / R 3000 L / 4000 R C Axis Right & Left spindle C Axis Spindles Right spindle 5 Deg with disk brake Rapid traverse X axis 945 ipm Rapid traverse Z axis 945 ipm Turret BMT 65 12 Tools Tool size (Square Shank) 1″ sq Tool size (Round shank) 1.5″ Index time(1 station/1 full rev) .2 sec/ Chuck ( Samwoo Kitagawa ) 12″Main 8″ Second Horsepower Main 30 HP Horsepower Sub 15 HP Live Tooling 7.5 HP Live Tooling Torque 26 ft-lbs Torque 665 ft-lbs (L) 103 ft-lbs (R) Work light Yes Weight 13,900 lbs Bed 45 deg Coolant system 43 psi Automatic Tool Setter Yes Standard tooling package Yes Sub Spindle Parts Catcher Yes
