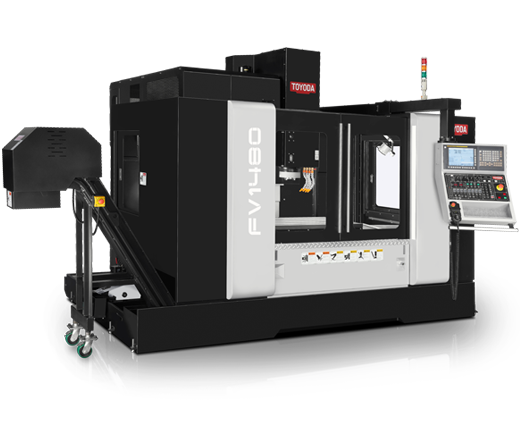

Roll over image to zoom in
Travel (X / Y / Z)
55.1" / 31.5" / 27.6"
55.1" / 31.5" / 27.6"
FERROUS SPECS
| Table Size | 61″ x 31.5″ (1,550 mm x 800 mm) |
| X-Axis Travel | 55.1″ (1,400 mm) |
| Y-Axis Travel | 31.5″ (800 mm) |
| Z-Axis Travel | 27.6″ (700 mm) |
| Maximum Table Load | 3,960 lb (1,800 kg) |
| Distance from Spindle Nose to Table Top | 7.9″ to 35.4″ (200 mm to 900 mm) |
| Spindle Drive Motor (30 min. / cont.) | 35 HP (26 kW) / 30 HP (22 kW) |
| Spindle Output Torque | 485 ft-lb (658 Nm) |
| Spindle Speed | Gearbox (CAT50): 6,000 RPM |
| Spindle Speed | Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE |
| Tool Storage Capacity | 40 Standard (60 Optional) |
| Standard Floor Space | 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm) |
| Machine Weight | 26,455 lb (12,000 kg) |
| Chip Conveyor | Hinged Belt Lift Up type, 47″ Drop Height from floor |
NON-FERROUS SPECS
| Table Size | 61″ x 31.5″ (1,550 mm x 800 mm) |
| X-Axis Travel | 55.1″ (1,400 mm) |
| Y-Axis Travel | 31.5″ (800 mm) |
| Z-Axis Travel | 27.6″ (700 mm) |
| Maximum Table Load | 3,960 lb (1,800 kg) |
| Distance from Spindle Nose to Table Top | 7.9″ to 35.4″ (200 mm to 900 mm) |
| Spindle Drive Motor (30 min. / cont.) | 35 HP (26 kW) / 30 HP (22 kW) |
| Spindle Output Torque | 485 ft-lb (658 Nm) |
| Spindle Speed | Gearbox (CAT50): 6,000 RPM |
| Spindle Speed | Direct Drive (CAT50): 10,000 RPM |
| Tool Storage Capacity | 40 Standard (60 Optional) |
| Standard Floor Space | 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm) |
| Machine Weight | 26,455 lb (12,000 kg) |
| Chip Conveyor | Hinged Belt Lift Up type, 47″ Drop Height from floor |
HIGH TEMP ALLOY SPECS
| Table Size | 61″ x 31.5″ (1,550 mm x 800 mm) |
| X-Axis Travel | 55.1″ (1,400 mm) |
| Y-Axis Travel | 31.5″ (800 mm) |
| Z-Axis Travel | 27.6″ (700 mm) |
| Maximum Table Load | 3,960 lb (1,800 kg) |
| Distance from Spindle Nose to Table Top | 7.9″ to 35.4″ (200 mm to 900 mm) |
| Spindle Drive Motor (30 min. / cont.) | 35 HP (26 kW) / 30 HP (22 kW) |
| Spindle Output Torque | 485 ft-lb (658 Nm) |
| Spindle Speed | Gearbox (CAT50): 6,000 RPM |
| Spindle Speed | Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE |
| Tool Storage Capacity | 40 Standard (60 Optional) |
| Standard Floor Space | 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm) |
| Machine Weight | 26,455 lb (12,000 kg) |
| Chip Conveyor | Hinged Belt Lift Up type, 47″ Drop Height from floor |
