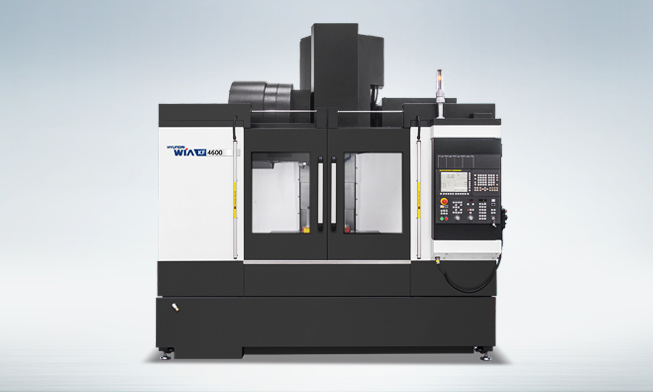

Hyundai Wia KF4600

In stock

Travel (X / Y / Z)
35.48" / 18.1" / 20.4"

Specifications

DescriptionUnitKF4600(STD)KF4600(OPT1)KF4600(OPT2)KF4600(OPT3)
Table Sizemm1050×4601050×4601050×4601050×460
Max. Load Capacitykg600600600600
Spindle Driving MethodDirectDirectDirectBuilt in
Spindle TaperBBT40BBT40BBT40BBT40
Spindle RPMr/min8,0008,00012,00015,000
Spindle PowerkW18.5/1115/1118.5/1125/22
Spindle TorqueN.m118/70286/143118/70167/95
Travel(X/Y/Z)mm900/460/520900/460/520900/460/520900/460/520
Rapid Feed Rate(X/Y/Z)m/min36/36/3636/36/3636/36/3636/36/36
Slide TypeLMLMLMLM
No. of ToolsEA30303030
Tool Change Time
(Chip To Chip)
sec3.23.23.23.2

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.

Hyundai Wia KF4600

Features

  • Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K)
  • Increases strength through structural analysis
  • Expands machining domain with y-axis 460mm design
  • Shortens not-cutting time with rapid feeds (36/36/36m/min.)
  • Applied the latest HEIDENHAIN TNC 620 controller
